WP7113SYC

LED Indication - Discrete Overview

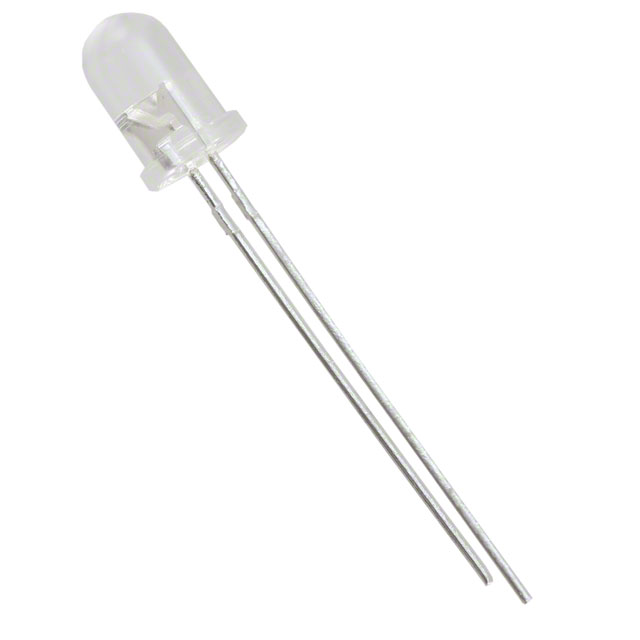

The WP7113SYC is a single-color yellow light-emitting diode manufactured by Kingbright, designed for through-hole mounting in the T-1 3/4 (5 mm) package. It emits light at a peak wavelength of 590 nm with a typical luminous intensity of 2000 mcd. The component operates with a forward voltage of 2 V at a forward current of 20 mA and has a maximum power dissipation rating of 75 mW. It features a water-clear lens with a 20-degree viewing angle and functions within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Emits bright yellow light with high luminous intensity suitable for clear visibility applications
• Features a water-clear dome lens to maximize light transmission efficiency
• Constructed with standard 5 mm through-hole leads for reliable PCB integration

LED Indication - Discrete Applications

• Panel indicators for electronic equipment status display
• Power supply status signaling
• General purpose visual alerts

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against the manufacturer datasheet to ensure compatibility with required lens transparency and color specifications. Confirm RoHS compliance status prior to final procurement decisions. Cross-reference the part number with official distributor catalogs to validate current availability and manufacturing lifecycle status before initiating orders.

LED Indication - Discrete Selection Notes

Select this component when a high-intensity yellow indicator is required for through-hole assembly. Ensure the circuit design accommodates the 2 V forward voltage drop and limits current to prevent exceeding the 75 mW power dissipation limit. Consider the 20-degree beam angle for directional lighting requirements rather than wide-area illumination needs.

LED Indication - Discrete Part Context

This device belongs to the Kingbright WP7113 series of T-1 3/4 LEDs, which are widely used in industrial and consumer electronics. The series offers various color options and lens treatments to meet diverse signaling requirements. The WP7113SYC specifically provides a balance of brightness and standard form factor for legacy and modern board designs.

LED Indication - Discrete Replacement Considerations

Compatible substitutes include other 5 mm yellow through-hole LEDs with similar electrical characteristics, such as the WP7113SEC or WP7113SECK/J3, provided they match the required wavelength and intensity specifications.
