X12A032000B81H-HZ

Crystals Overview

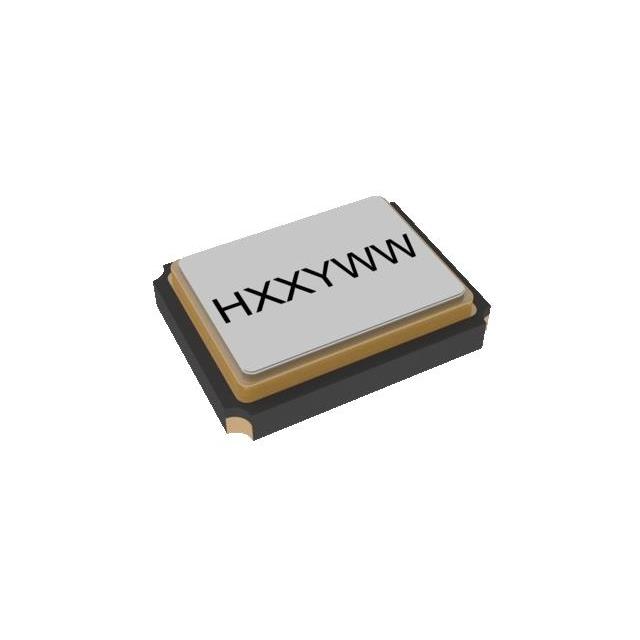

The X12A032000B81H-HZ is a surface-mount quartz crystal oscillator manufactured by Harmony Electronics Corp. It operates at a fundamental frequency of 32 MHz with a frequency tolerance and stability of ±10ppm. The component features a load capacitance of 8pF and is designed for operation within a temperature range of -30°C to +85°C. It utilizes a 4-SMD, no-lead package configuration suitable for automated assembly processes.

Crystals Feature Summary

• Fundamental operating mode for precise frequency generation
• Surface mount construction for compact circuit integration
• Wide industrial temperature range capability

Crystals Applications

• Microcontroller clock sources
• Communication interface timing
• Digital signal processing circuits

Crystals Procurement Notes

Verify the specific suffix codes against official Harmony Electronics documentation to ensure correct load capacitance and temperature rating specifications. Confirm package dimensions match PCB footprint requirements before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Crystals Selection Notes

Select this component when a 32 MHz fundamental frequency with ±10ppm stability is required for surface-mount applications. Ensure the system load capacitance matches the specified 8pF value to maintain accurate frequency performance. Consider the -30°C to +85°C operating range for environmental compatibility.

Crystals Part Context

This part belongs to the Harmony Electronics quartz crystal family, specializing in frequency control components. The manufacturer focuses on quartz crystals and oscillators established since 1976. This specific model represents their standard surface-mount offering for general-purpose timing applications.

Crystals Replacement Considerations

Compatible substitutes include X2C032000BA1H-HZ and X1C032000B81H-HR from the same manufacturer, provided they meet identical electrical and mechanical specifications.
