X2R026000BZ1HAZ-DHPZ

Crystals Overview

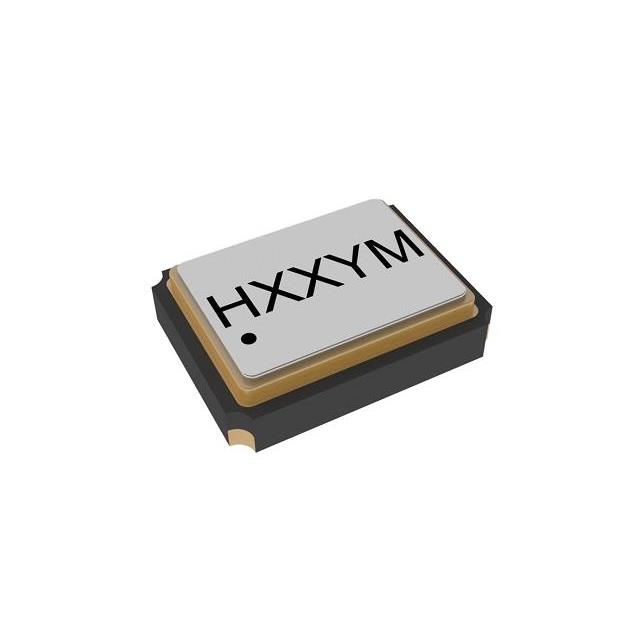

The X2R026000BZ1HAZ-DHPZ is a passive surface-mount crystal resonator manufactured by Harmony Electronics Corp. It operates at a fundamental frequency of 26 MHz with a frequency tolerance of ±10 ppm and a load capacitance of 7 pF. The component utilizes the HSX221SR series design, featuring a four-terminal SMD package without leads for direct board mounting. It is classified as an active product within the analog mixed-signal IC category, designed for precision timing applications requiring stable oscillation in consumer and industrial electronics.

Crystals Feature Summary

• Passive quartz crystal resonator providing precise frequency control
• Surface-mount technology with leadless four-terminal SMD packaging
• Designed for high stability in consumer and industrial networking applications

Crystals Applications

• Consumer electronic devices requiring clock signals
• Industrial networking equipment
• Data communication systems

Crystals Procurement Notes

Verify the specific operating temperature range and ESR values against the official datasheet, as general listings may omit critical environmental limits. Confirm that the HSX221SR series designation aligns with the required mechanical dimensions and soldering profile for the target PCB layout. Ensure compatibility with the system's load capacitance requirements before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 26 MHz reference frequency is required for surface-mount assembly. The ±10 ppm tolerance suits standard digital logic and microcontroller clocks. Consider the leadless SMD form factor for automated placement processes. Validate that the 7 pF load capacitance matches the oscillator circuit design to ensure accurate frequency generation without external trimming.

Crystals Part Context

This part belongs to the HSX221SR series of quartz crystals from Harmony Electronics Corp. The manufacturer specializes in precision frequency components, leveraging collaboration with Daishinku Corp. for quality control. The series targets miniaturization trends in modern electronics, offering reliable performance across various sectors including automotive and 5G infrastructure where compact timing solutions are essential.

Crystals Replacement Considerations

Direct substitutes must match the 26 MHz frequency, 7 pF load capacitance, and ±10 ppm tolerance. Verify pinout compatibility for the four-terminal SMD package. Cross-reference mechanical footprint dimensions to ensure fit within existing PCB silkscreen boundaries. Check if alternative manufacturers offer equivalent HSX221SR series parts with identical thermal characteristics.
