XC4VFX100-10FF1517C

Field Programmable Gate Array Overview

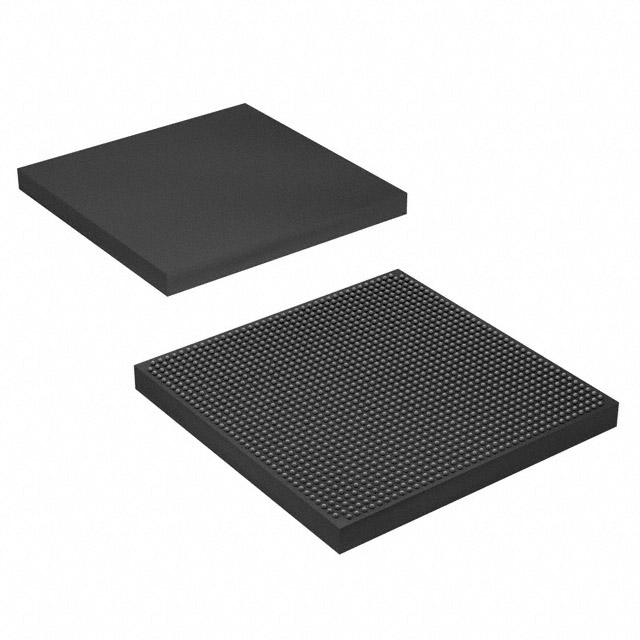

The AMD XC4VFX100-10FF1517C is a Virtex-4 Field Programmable Gate Array (FPGA) from the FX family, designed for high-performance digital signal processing and system integration. It features 98,304 logic cells and 268 DSP slices, supporting complex arithmetic operations with dedicated hardware multipliers. The device includes 10.4 Mbits of block RAM and supports data rates up to 1.06 Gbps via its transceivers. Operating at a maximum frequency of 10 in the -1 speed grade, it utilizes a 90nm low-k process technology. The component is housed in a 1517-pin FBGA package, providing extensive I/O capabilities for demanding applications.

Field Programmable Gate Array Feature Summary

• High-density logic architecture with nearly 100K logic cells for complex design implementation
• Integrated DSP slices with 18x18 multipliers for efficient signal processing tasks
• Large block memory capacity supporting substantial data buffering requirements
• High-speed serial transceivers enabling robust communication interfaces

Field Programmable Gate Array Applications

• Digital signal processing systems requiring high throughput
• Telecommunications infrastructure equipment
• Industrial automation and control systems
• Test and measurement instrumentation

Field Programmable Gate Array Procurement Notes

Verify the exact suffix '10FF1517C' against official AMD/Xilinx documentation to confirm speed grade, temperature range, and package type. Ensure compatibility with legacy design tools if migrating older projects. Check for end-of-life status or obsolescence notices prior to procurement planning.

Field Programmable Gate Array Selection Notes

Select this model when designs require significant DSP resources combined with moderate logic density. Compare against Virtex-5 or Spartan-4 families based on power consumption and performance needs. Validate pinout compatibility with existing PCB layouts due to the specific 1517-pin FBGA footprint.

Field Programmable Gate Array Part Context

This component belongs to the Virtex-4 FX family, which bridges the gap between high-end Virtex-5 devices and cost-effective Spartan-4 solutions. It was widely used in applications needing reliable FPGA performance before the transition to 65nm and 40nm technologies. The FX series specifically emphasized DSP capabilities within the Virtex ecosystem.

Field Programmable Gate Array Replacement Considerations

Direct replacements may include other Virtex-4 variants with different packages or speed grades. For modern equivalents, consider Virtex-5 or Virtex-6 families, though pinouts and toolchains will differ significantly.
