XZCB25X143S

LED Indication - Discrete Overview

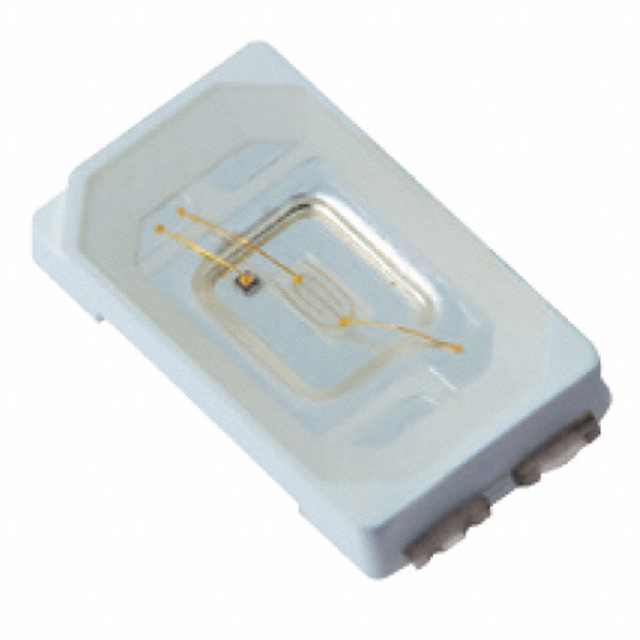

The SunLED XZCB25X143S is a surface-mount LED emitting blue light at a typical wavelength of 460nm. It features a nonstandard SMD package with dimensions of 5.30mm length by 3.00mm width and a maximum seated height of 1.02mm. The component operates with a typical forward voltage of 3.5V and a test current of 150mA, delivering an efficiency of 15 lm/W. The lens material is water clear, designed for color lighting applications.

LED Indication - Discrete Feature Summary

• Emits blue light with a typical wavelength of 460nm
• Utilizes a water clear lens for optical transmission
• Designed for surface mount technology (SMD) assembly

LED Indication - Discrete Applications

• Color lighting systems
• Electronic device indication
• General illumination modules

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version from SunLED to confirm electrical tolerances and thermal resistance values. Ensure compatibility with standard reflow soldering profiles for SMD components. Check RoHS compliance status if required by project specifications. Confirm package dimensions match PCB footprint requirements before ordering.

LED Indication - Discrete Selection Notes

Select this component for applications requiring blue illumination in compact surface-mount designs. Consider the 150mA test current and 3.5V forward voltage when designing drive circuits. Evaluate the 15 lm/W efficiency against system brightness requirements. Ensure the nonstandard package size fits within the available board space constraints.

LED Indication - Discrete Part Context

This part belongs to SunLED's range of surface-mount LEDs, which includes various colors and package types. SunLED manufactures optoelectronic components compliant with RoHS and REACH standards. The XZ series typically denotes specific SMD form factors used in modern electronics manufacturing.

LED Indication - Discrete Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation. Cross-referencing requires matching exact wavelength, package dimensions, and electrical characteristics. Consult manufacturer catalogs for direct equivalents.
