XZM2ACY53W-1

LED Indication - Discrete Overview

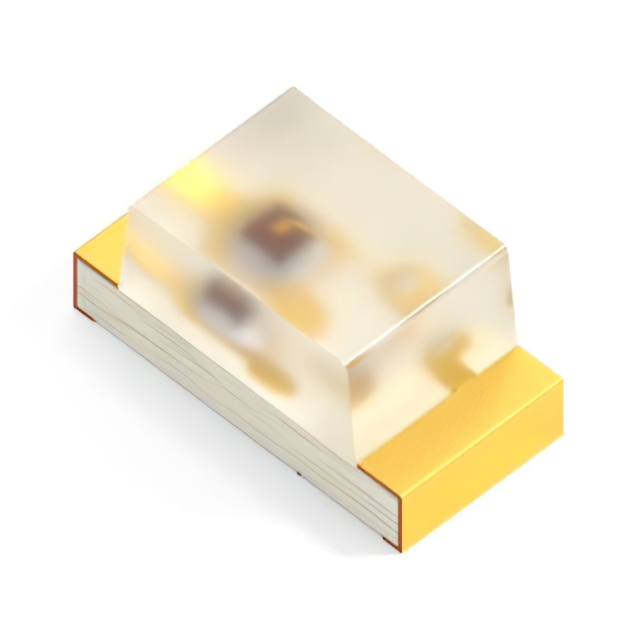

The XZM2ACY53W-1 is a single-color yellow surface-mount LED from SunLED's PixsoLED series. It features a rectangular lens with a flat top, emitting at a peak wavelength of 590nm. The component operates with a typical forward voltage of 2V at a test current of 20mA. Its physical dimensions are 1.60mm in length and 0.80mm in width, with a maximum height of 0.75mm. The package size corresponds to the standard 0603 (1608 metric) footprint. It provides a luminous intensity of 347mcd and offers a wide viewing angle of 120 degrees.

LED Indication - Discrete Feature Summary

• Rectangular lens design with a flat top configuration for specific optical distribution.
• Wide 120-degree viewing angle suitable for broad indicator applications.
• Compliant with RoHS3 standards and REACH regulations.
• Moisture sensitivity level 3, ensuring standard reflow soldering compatibility.

LED Indication - Discrete Applications

• General status indication on electronic circuit boards
• Panel mount indicators requiring wide visibility
• Consumer electronics status signaling
• Industrial equipment operational alerts

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm the flat-top lens variant. Ensure that the selected packaging option aligns with automated assembly requirements. Confirm moisture sensitivity handling procedures prior to soldering. Cross-reference the electrical parameters with the target circuit design to ensure proper current limiting. Validate compliance with environmental directives relevant to the destination market.

LED Indication - Discrete Selection Notes

Select this component when a rectangular form factor with a flat top is required for aesthetic or optical reasons. The 120-degree viewing angle makes it suitable for applications where the indicator may be viewed from various off-axis positions. Consider the 0603 footprint constraints during PCB layout. Verify that the 2V forward voltage drop is compatible with the driving logic levels. Ensure the 347mcd intensity meets the visibility requirements of the end product.

LED Indication - Discrete Part Context

This part belongs to SunLED's PixsoLED series, which focuses on compact surface-mount LEDs. The XZM2ACY53 base model family includes variants with different lens shapes and colors. The W-1 suffix specifically denotes the yellow color with a water-clear flat-top lens. This series is designed for high-volume manufacturing processes and offers consistent performance across the production batch.

LED Indication - Discrete Replacement Considerations

Direct substitutes within the same series include the XZM2ACY53W-8, which shares similar electrical characteristics but features a domed lens instead of a flat top. Other potential replacements must match the 0603 footprint, 590nm wavelength, and 2V forward voltage. Verify mechanical height compatibility if space constraints are critical.
