YC0010AA

Antennas RF Overview

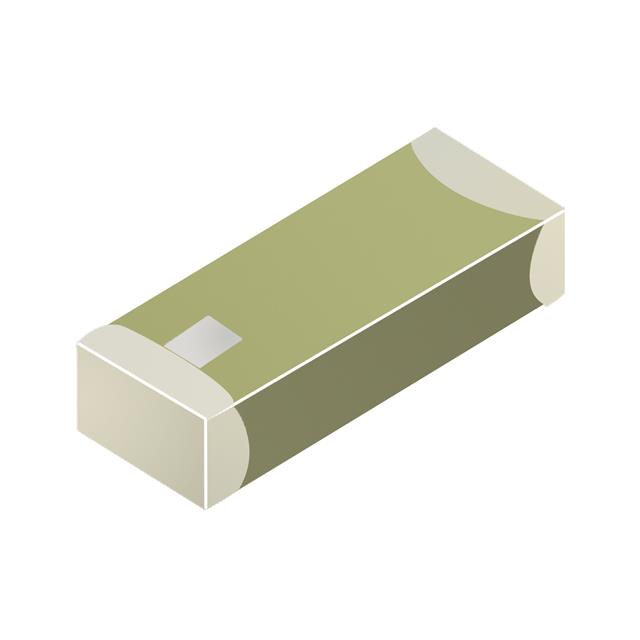

The Quectel YC0010AA is a ceramic chip monopole antenna designed for surface mount technology (SMT) applications. It operates within the 2.4GHz to 2.5GHz frequency range, supporting Bluetooth and Wi-Fi protocols. The component features a gain of 5dBi and an impedance of 50 ohms. Its physical dimensions are 5.2mm x 2mm x 1.2mm, with a maximum height of 1.20mm. The antenna utilizes solder termination and complies with RoHS3 standards.

Antennas RF Feature Summary

• Embedded ceramic chip construction for compact integration
• Monopole design optimized for 2.4GHz wireless communications
• Surface mount termination for automated assembly

Antennas RF Applications

• Bluetooth devices
• Wi-Fi enabled modules
• IoT sensors requiring 2.4GHz connectivity

Antennas RF Procurement Notes

Verify the specific ordering suffix against the manufacturer's datasheet to ensure correct packaging configuration. Confirm that the procurement channel provides official documentation matching the YC0010AA part number. Ensure compliance with RoHS3 requirements if applicable to the target market regulations. Cross-reference the supplier's certificate of conformity with the official Quectel specifications.

Antennas RF Selection Notes

Select this component when a low-profile embedded solution is required for 2.4GHz wireless interfaces. The SMT package facilitates high-volume manufacturing processes. Consider the 5dBi gain specification for standard range communication needs. Evaluate the 5.2mm footprint against available PCB real estate constraints.

Antennas RF Part Context

This antenna belongs to Quectel's embedded antenna portfolio, targeting compact wireless modules. It complements cellular and IoT modules by providing dedicated RF front-end solutions. The product line emphasizes miniaturization while maintaining signal integrity for short-range wireless protocols.

Antennas RF Replacement Considerations

Consult the official Quectel compatibility matrix for verified substitutes. Generic replacements may differ in gain or VSWR characteristics. Verify mechanical footprint compatibility before substitution.
