YEMN016AA

Antennas RF Overview

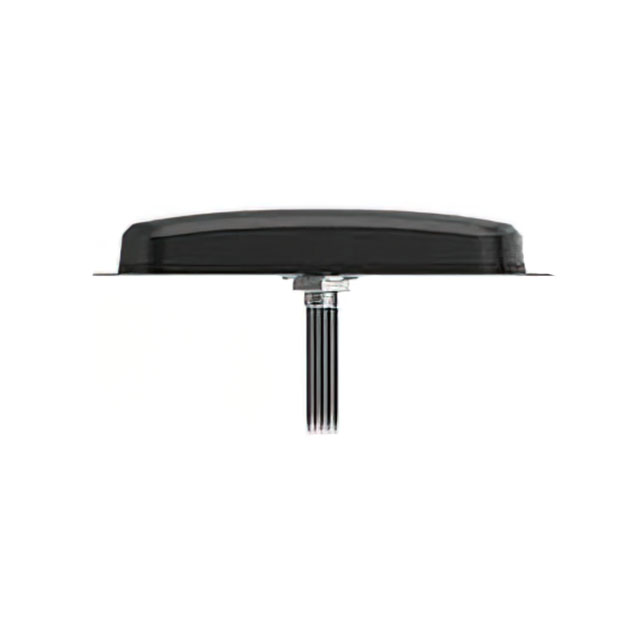

The Quectel YEMN016AA is a 5G screw mount low profile antenna box designed for integration with various ground plane sizes or in free space. It provides broad frequency coverage from 600MHz to 6000MHz, supporting 5G and 4G networks. The unit features a male-type SMA connector and includes a 300mm cable. Dimensions are 204 x 86.6 x 31 mm.

Antennas RF Feature Summary

• Screw mount design for secure installation
• Ultra-wide-band coverage from 600MHz to 6000MHz
• Compatible with various ground plane sizes

Antennas RF Applications

• 5G mobile connectivity
• IoT device integration
• Remote information processing

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against the application design. Confirm that the mounting surface supports the screw mount mechanism. Ensure the operating environment falls within the specified frequency range of 600MHz to 6000MHz. Check compatibility with the host module's RF interface standards before finalizing the procurement order.

Antennas RF Selection Notes

Select this model when a robust, wide-band solution is required for 5G and 4G applications. The screw mount option offers stability in demanding environments. Consider the physical dimensions of 204 x 86.6 x 31 mm for spatial constraints. The integrated 300mm cable simplifies routing compared to direct connectors.

Antennas RF Part Context

This component belongs to Quectel's lineup of external antennas for cellular modules. It complements modules like the EG21-G and EC2x series by providing reliable signal reception. The product line focuses on enabling flexible migration and stable connectivity for IoT and M2M applications across global networks.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate other Quectel combo antennas such as the YEMN017AA or YEMN926J1A if alternative mounting styles or specific band requirements differ.
