ZSS-110-09-L-D-1320

Headers, Male Pins Overview

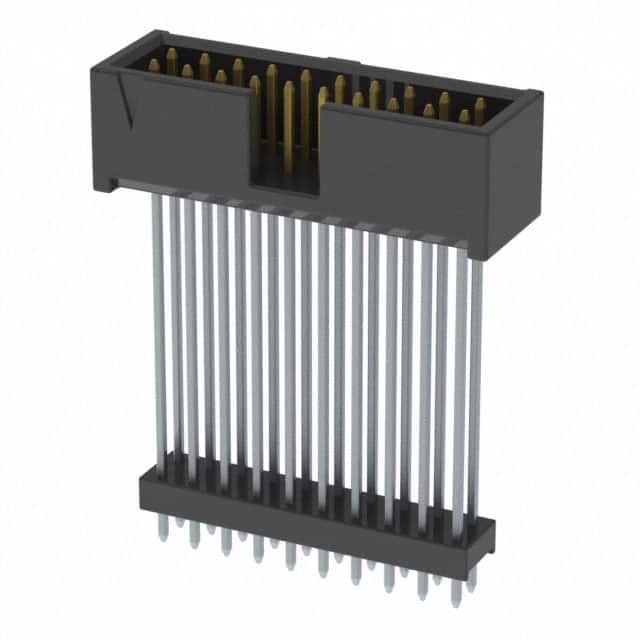

The ZSS-110-09-L-D-1320 is a board stacking connector from the Samtec Flex Stack, ZSS series. It features a .100" (2.54 mm) pitch with 2 rows and 9 positions per row, totaling 18 contacts. The male pins are constructed from phosphor bronze with tin plating over a nickel barrier. Designed for through-hole straight installation, this shrouded elevated terminal strip utilizes black glass-filled polyester insulation rated UL 94 V-0. It operates within a temperature range of -55°C to +125°C and provides an insulation resistance of 5000 MΩ minimum.

Headers, Male Pins Feature Summary

• Elevated shroud design facilitates blind mating applications
• Flex Stack architecture allows modified post height and body position in increments
• Shrouded four-wall construction ensures precise alignment during connection

Headers, Male Pins Applications

• Board-to-board interconnections requiring elevated positioning
• Blind mating scenarios where visual alignment is restricted
• General purpose electronic assemblies needing reliable stacking

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Samtec ZSS series catalog to confirm exact pin count, plating option, and lead style. Ensure the selected variant matches the required insulation height and termination type for your PCB layout. Cross-reference the part number with current manufacturer documentation to avoid discrepancies in configuration or compliance status.

Headers, Male Pins Selection Notes

Choose this component when a shrouded, elevated header is necessary for blind mating or specific stack-up heights. The tin-plated phosphor bronze contacts offer cost-effective conductivity suitable for general-purpose applications. Confirm that the through-hole mounting style and straight orientation align with your assembly process and board design constraints.

Headers, Male Pins Part Context

This part belongs to the ZSS series of .100" shrouded elevated terminal strips. It mates with socket strips such as SSW, SSQ, ESW, ESQ, SSM, and BCS types. The series is characterized by its flexible design options, allowing for various post heights and body positions to accommodate different mechanical requirements in compact electronic designs.

Headers, Male Pins Replacement Considerations

Compatible mating connectors include SSW, SSQ, ESW, ESQ, SSM, and BCS type strips. Verify mechanical compatibility and electrical specifications before substituting with other series headers. Ensure the replacement maintains the same pitch, shrouding, and elevation characteristics.
