1-770190-0

Headers, Male Pins Overview

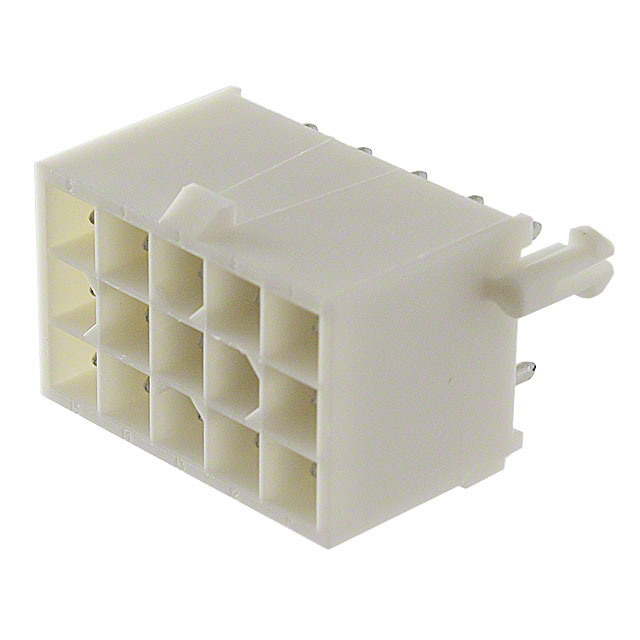

The 1-770190-0 is a pin header connector from the Mini Universal MATE-N-LOK series by TE Connectivity AMP Connectors. It features a wire-to-board configuration with three rows and fifteen positions. The connector utilizes a 4.14 mm pitch for terminal spacing and employs through-hole vertical mounting for secure PCB attachment. Designed for general applications, it provides reliable electrical interconnection in industrial and commercial environments.

Headers, Male Pins Feature Summary

• Supports high-density wiring configurations through a three-row layout within a compact footprint.
• Ensures robust mechanical stability via through-hole vertical mounting on printed circuit boards.
• Facilitates efficient signal and power transmission using standardized 4.14 mm terminal spacing.

Headers, Male Pins Applications

• Industrial control systems requiring multi-circuit connectivity
• Commercial equipment internal wiring harnesses
• General-purpose electronic assemblies needing reliable board-to-wire interfaces

Headers, Male Pins Procurement Notes

Verify the specific row count and contact arrangement against official datasheets before procurement. Confirm that the through-hole mounting style aligns with the target PCB design requirements. Ensure compatibility with mating terminals specified for the Mini Universal MATE-N-LOK series to guarantee proper engagement and long-term reliability.

Headers, Male Pins Selection Notes

Select this component when a high-contact-count interface is required in a limited space. The three-row design maximizes density compared to single or double-row alternatives. Consider the 4.14 mm pitch constraints and ensure sufficient clearance for the vertical header profile during assembly planning.

Headers, Male Pins Part Context

This part belongs to the Mini Universal MATE-N-LOK family, known for versatile interconnect solutions. It serves as a specialized variant offering increased capacity through its multi-row architecture while maintaining the standard dimensions associated with the broader MATE-N-LOK ecosystem for system integration.

Headers, Male Pins Replacement Considerations

Consult official substitution lists for direct equivalents. Verify that any alternative maintains identical pitch, row configuration, and mounting type to ensure functional interchangeability without redesigning the host PCB.

Headers, Male Pins FAQ

What is the terminal pitch of the 1-770190-0 connector?

The terminal pitch is 4.14 mm, which defines the center-to-center distance between adjacent contacts.

How many rows does this connector feature?

The 1-770190-0 connector features a three-row configuration to accommodate fifteen contacts.
