1-770872-0

Headers, Male Pins Overview

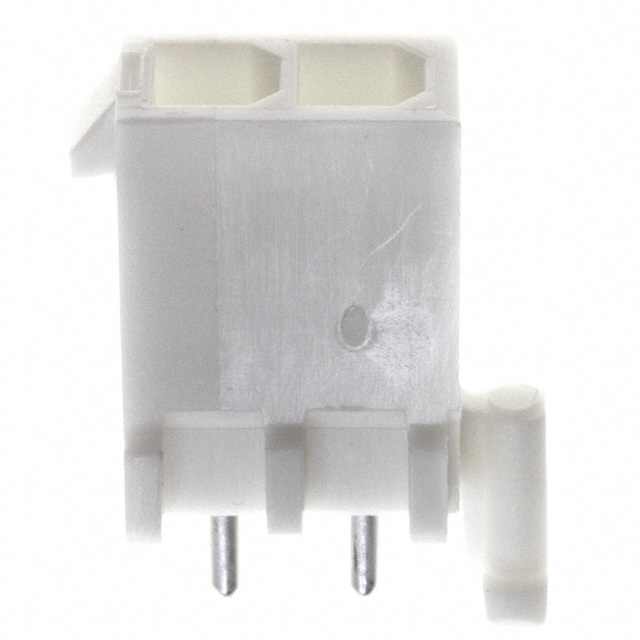

The 1-770872-0 is a pin header connector from the TE Connectivity AMP Connectors line, designed for wire-to-board applications. It features a vertical through-hole mounting style with two positions arranged in a single row. The connector utilizes a 4.14 mm (0.163 inch) pitch and includes tin-plated contacts for reliable electrical performance.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting configuration
• Tin-plated contact surfaces
• Single-row two-position layout

Headers, Male Pins Applications

• General electronic circuit interconnections
• Wire-to-board signal transmission
• Industrial control panel assembly

Headers, Male Pins Procurement Notes

Verify the specific datasheet for complete mechanical dimensions and mating force requirements. Confirm that the tin plating thickness meets the intended application's corrosion resistance standards. Ensure the PCB hole diameter aligns with the pin specifications to guarantee proper insertion and retention during assembly processes.

Headers, Male Pins Selection Notes

Select this component when a low-profile, two-position vertical header is required for direct board mounting. Consider the 4.14 mm pitch constraint against available trace spacing on the target PCB. Evaluate the tin plating against environmental conditions to determine if additional protection or alternative finishes are necessary for long-term reliability.

Headers, Male Pins Part Context

This part belongs to the standard AMP Connectors product family, which provides a wide range of interconnect solutions for various industrial and commercial applications. The manufacturer specializes in connectors that ensure stable signal and power transmission across diverse operating environments.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2-position count, 4.14 mm pitch, and vertical through-hole form factor. Verify that any alternative maintains identical pin dimensions and plating characteristics to ensure compatibility with existing tooling and mating components.
