1-794075-0

Headers, Male Pins Overview

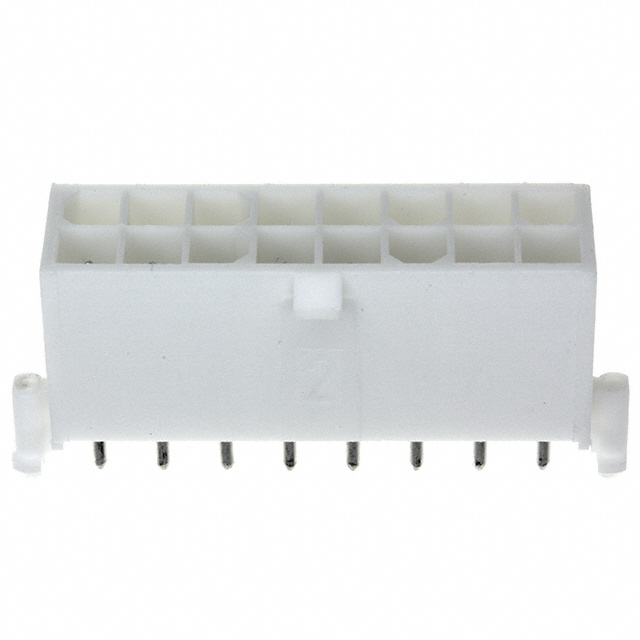

The 1-794075-0 is a rectangular power connector from the Mini Universal MATE-N-LOK series, manufactured by TE Connectivity AMP Connectors. It features a header configuration with 16 positions and a 0.163-inch (4.14mm) pitch. Designed for through-hole mounting, this component utilizes tin-plated contacts to ensure reliable electrical performance. The connector supports a rated voltage of 600VAC and incorporates a four-wall shroud for enhanced protection. Constructed with nylon insulation, it meets UL94 V-0 flammability standards and operates within a temperature range of -20°C to 85°C.

Headers, Male Pins Feature Summary

• Features a robust four-wall shroud design that provides comprehensive environmental protection and mechanical stability during mating cycles.
• Incorporates a slide-lock fastening mechanism to secure connections firmly against vibration and accidental disengagement.
• Utilizes tin-plated copper alloy contacts to maintain consistent conductivity and resist corrosion over extended service life.

Headers, Male Pins Applications

• Industrial control systems requiring high-voltage interconnects
• Power distribution units in manufacturing equipment
• Heavy-duty machinery control panels

Headers, Male Pins Procurement Notes

Verify the specific order code against official TE Connectivity documentation to confirm pin count and orientation. Ensure compatibility with mating sockets regarding current ratings and thermal limits. Confirm that the through-hole footprint matches the target PCB layout dimensions before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this model when a 16-position header is required for high-voltage applications up to 600VAC. The 4.14mm pitch accommodates standard wire gauges for industrial power circuits. Consider the operating temperature range and UL94 V-0 rating for safety compliance in enclosed or high-heat environments.

Headers, Male Pins Part Context

This component belongs to the Mini Universal MATE-N-LOK family, a widely used line of rectangular connectors known for durability. The series offers various configurations for board-to-wire and board-to-board connections. This specific part represents a standard header variant optimized for through-hole assembly in demanding electrical environments.

Headers, Male Pins Replacement Considerations

Consult official TE Connectivity cross-reference guides for verified substitute part numbers. Ensure any replacement maintains identical pin count, pitch, and voltage ratings to guarantee system compatibility and safety.
