1-794628-2

Headers, Male Pins Overview

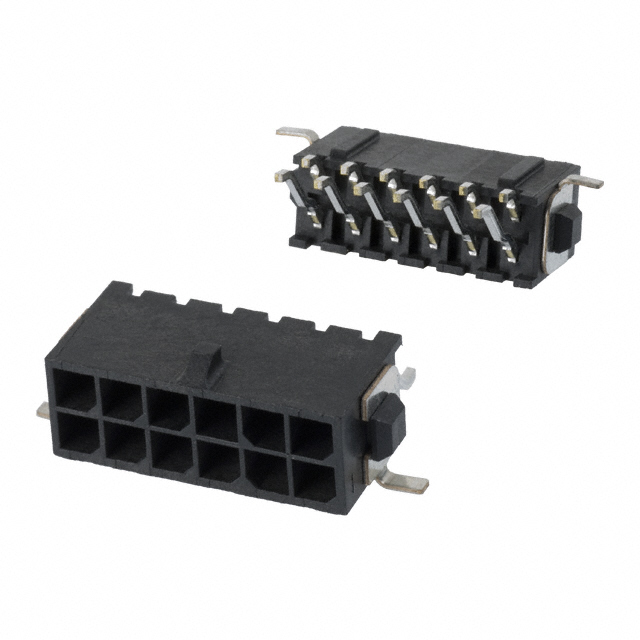

The 1-794628-2 is a Micro MATE-N-LOK series header connector manufactured by TE Connectivity AMP Connectors. It features a vertical surface mount design with 12 positions and a 3.00mm pitch. The housing is constructed from black polyamide (PA) nylon with UL94 V-0 flammability rating. Contacts are brass pins with gold or gold-pallide mating surfaces and tin-plated tails, rated for 250V and operating between -40°C and 105°C.

Headers, Male Pins Feature Summary

• Vertical surface mount configuration for automated PCB assembly
• Four-wall shrouded housing provides secure pin alignment
• Gold or gold-pallide contact plating ensures reliable signal transmission

Headers, Male Pins Applications

• General electronic interconnects
• Board-to-cable or board-to-wire assemblies
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm exact pin count and orientation. Ensure the component matches the required surface mount footprint and thermal profile specifications for your manufacturing process before finalizing orders.

Headers, Male Pins Selection Notes

Select this part when a vertical SMD header with a 3mm pitch is required. Confirm that the 12-position layout fits the design constraints. Verify compatibility with standard reflow soldering profiles and ensure the voltage and current ratings meet the circuit requirements.

Headers, Male Pins Part Context

This component belongs to the Micro MATE-N-LOK family, designed for compact high-density applications. It utilizes a slide-lock fastening mechanism for secure mating. The series is widely used in industrial and commercial equipment requiring robust rectangular connectors.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 12-position Micro MATE-N-LOK headers with identical pitch and mounting style. Cross-reference dimensions and electrical ratings carefully to ensure mechanical and functional compatibility.
