1-794636-2

Headers, Male Pins Overview

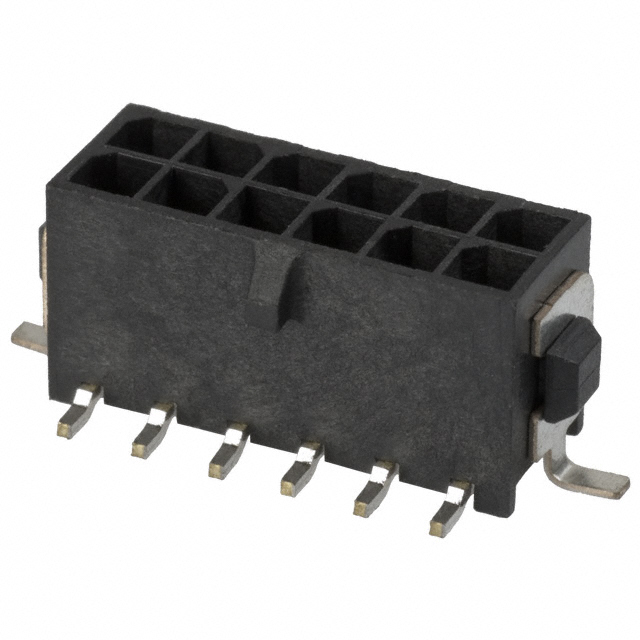

The 1-794636-2 is a Micro MATE-N-LOK series header assembly manufactured by TE Connectivity AMP Connectors. It features a surface mount (SMD) vertical design with 12 positions arranged in a dual row configuration. The connector utilizes a 0.118-inch (3.00mm) pitch for mating contacts and provides shrouding on four walls to ensure proper alignment during insertion. The housing is constructed from black polyamide (PA), nylon, rated UL94 V-0 for flammability. Contacts are made of brass with tin plating, offering a thickness of 100.0µin (2.54µm).

Headers, Male Pins Feature Summary

• Surface mount vertical header assembly designed for automated PCB placement.
• Four-wall shrouded housing structure ensures precise pin-to-receptacle alignment.
• Tin-plated brass contacts provide reliable electrical connectivity.
• Polyamide insulation material meets UL94 V-0 flammability standards.

Headers, Male Pins Applications

• Board-to-cable or board-to-wire interconnections
• General purpose electronic equipment signal routing
• Industrial control system circuit boards

Headers, Male Pins Procurement Notes

Verify the specific suffix '2' against the official datasheet to confirm the exact contact count and termination style. Ensure the ordering part number matches the required surface mount orientation and pitch specifications for your PCB layout. Confirm RoHS compliance status if restricted materials are prohibited in your manufacturing process.

Headers, Male Pins Selection Notes

Select this component when a 12-position, 3mm pitch header is required for surface mount applications. Consider the Micro MATE-N-LOK series compatibility with corresponding receptacles. Evaluate the thermal profile requirements for SMD soldering against the specified operating temperature range of -40°C to 105°C.

Headers, Male Pins Part Context

This component belongs to the Micro MATE-N-LOK family, a widely used rectangular connector system known for its reliability in various industrial and commercial environments. The series offers multiple configurations including through-hole and surface mount options with varying pin counts.

Headers, Male Pins Replacement Considerations

Direct substitute: 1-794636-2. Verify mechanical footprint and electrical ratings before replacing with alternative manufacturers' products.

Headers, Male Pins FAQ

What is the contact material for this connector?

The contacts are made of brass with a tin plating finish.

Is this connector shrouded?

Yes, it features four-wall shrouding to guide mating pins.
