1053142712

Headers, Male Pins Overview

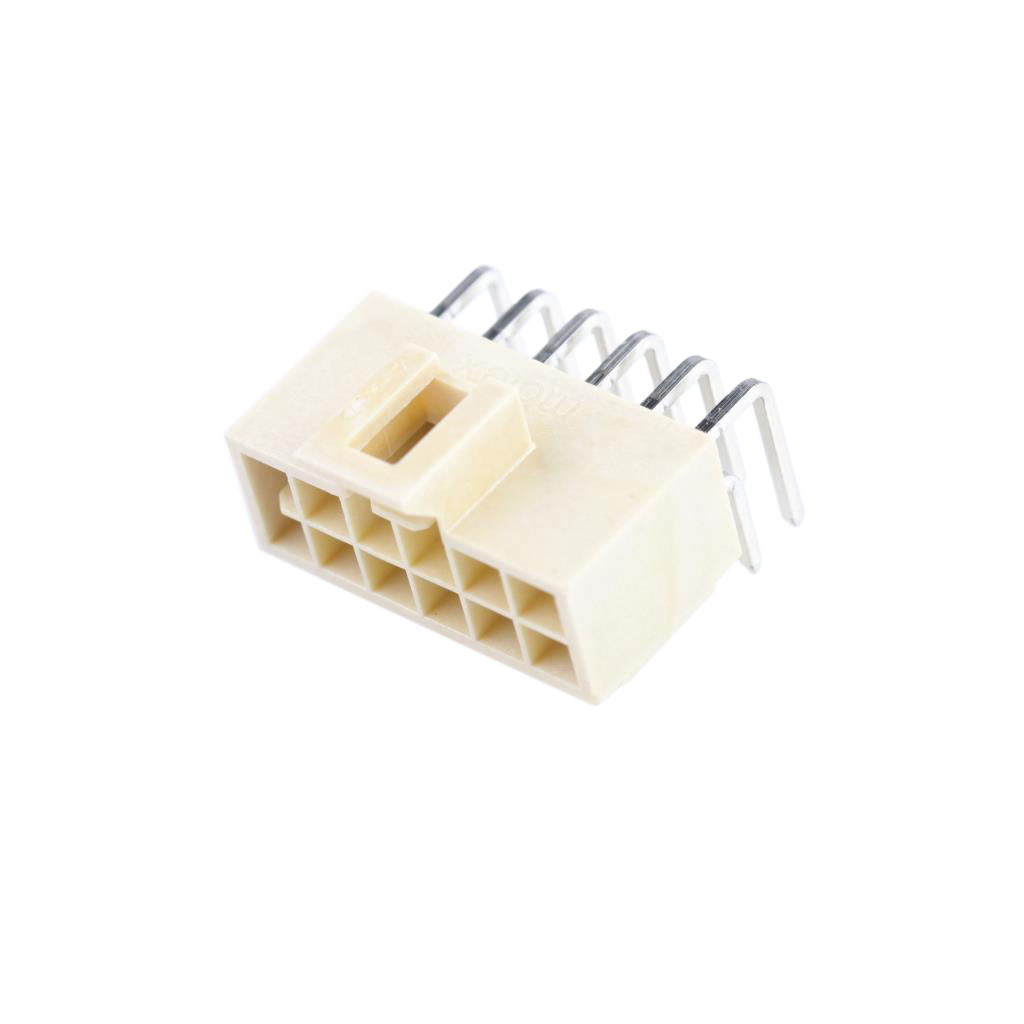

Molex part number 1053142712 is a male pin header connector from the Molex Headers, Male Pins product family. It features solder termination for secure board attachment and utilizes a latch holder fastening type to ensure stable mating with corresponding receptacles. The component incorporates square contact shapes designed for reliable signal transmission within electronic assemblies. Key physical dimensions include a contact length of 0.126 inches (3.20mm) and an insulation height of 0.247 inches (6.28mm). These specifications define the mechanical interface and spatial requirements for integration into printed circuit boards.

Headers, Male Pins Feature Summary

• Square contact shape design
• Solder termination method
• Latch holder fastening type

Headers, Male Pins Applications

• General electronic assembly interconnects
• Board-to-board connections requiring latch retention
• Signal routing in consumer electronics

Headers, Male Pins Procurement Notes

Verify the exact pin count and pitch configuration against the specific datasheet before procurement, as header series often vary by row count. Confirm that the solder termination type matches the manufacturing process capabilities of the target assembly line. Ensure the latch holder mechanism is compatible with the mating housing requirements of the final product design.

Headers, Male Pins Selection Notes

Select this component when a male header with square contacts and a latching feature is required for the application. The specified insulation height of 0.247 inches and contact length of 0.126 inches must fit within the available vertical clearance of the enclosure. Verify that the solder termination style aligns with the available PCB fabrication technologies and thermal profiles.

Headers, Male Pins Part Context

This part belongs to the Molex Headers, Male Pins category, which provides standardized interconnection solutions for various electronic devices. The series is characterized by robust construction and precise dimensional tolerances to ensure consistent performance across different industrial and commercial applications. It serves as a critical interface point for establishing electrical continuity between circuit boards and external wiring or modules.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Molex resources for cross-reference data.
