1097816

Overview

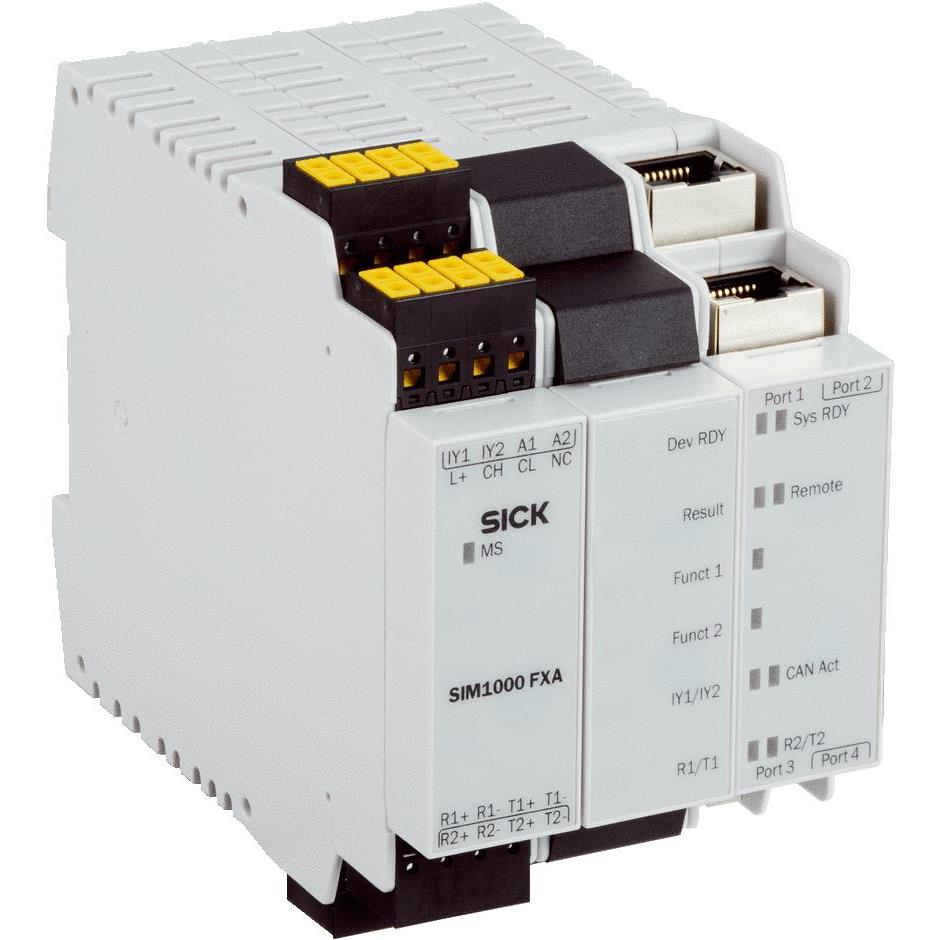

The SICK SIM1000-0P0B100 (Order No. 1097816) is a Sensor Integration Machine belonging to the SIM10xx series, specifically the FX variant. It functions as a hardware platform for integrating and configuring SICK sensor devices within industrial automation environments. The unit operates on a 24VDC supply voltage and weighs approximately 0.6kg. It supports network connectivity for device linking and configuration via the SICK SOPAS ET PC tool, allowing users to manage individual IP addresses and download device drivers.

Feature Summary

• Provides a dedicated hardware interface for integrating SICK sensor devices into machine systems.
• Enables configuration and parameterization of connected sensors using the SICK SOPAS ET engineering tool.
• Supports network-based communication for downloading device drivers and managing IP address assignments.

Applications

• Integration of SICK sensor modules in automated manufacturing lines
• Configuration and testing of sensor devices using PC-based engineering tools
• Industrial machine building requiring standardized sensor interfaces

Procurement Notes

Verify the exact order number 1097816 against the specific FX variant requirements. Confirm that the application environment supports 24VDC operation. Ensure compatibility with the SICK SOPAS ET software version required for driver downloads and IP configuration. Check physical dimensions and weight constraints if space is limited.

Selection Notes

Select this model when a dedicated integration platform for SICK SIM10xx sensors is required. It is suitable for applications needing centralized configuration via SOPAS ET. Consider the FX variant specifically if it matches the desired sensor interface type. Verify power supply availability for 24VDC operation before procurement.

Part Context

This component is part of the SICK SIM10xx family, designed for sensor integration. The SIM1000 FX variant serves as a bridge between sensors and control systems, facilitating setup through PC tools. It is distinct from standalone sensors, acting instead as an integration hub for configuration and data exchange within industrial networks.

Replacement Considerations

Check for updated SIM10xx series models with enhanced network capabilities. Verify if newer firmware versions of the SOPAS ET tool are compatible with existing configurations. Ensure substitute parts maintain the same 24VDC input requirement and physical mounting specifications.
