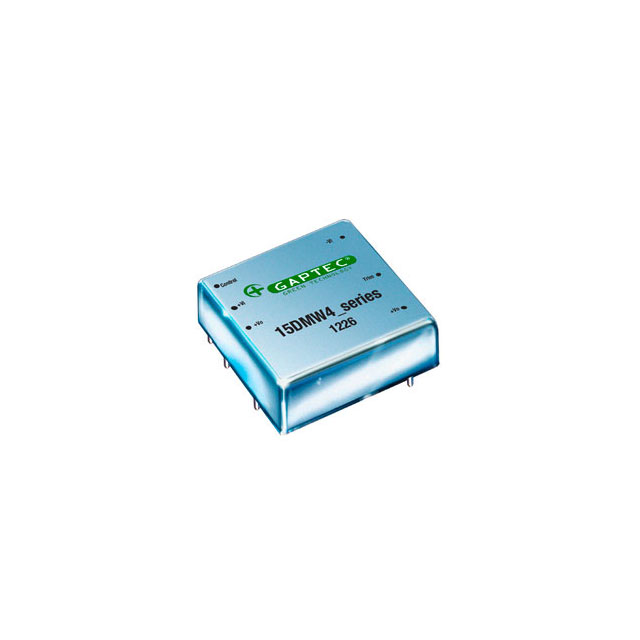

15DMW_2405S1.5 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists GAPTEC Electronic. Its product description is ISOLATED MODULE DC DC CONVERTERS. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for 15DMW_2405S1.5
- Description：ISOLATED MODULE DC DC CONVERTERS
- Series：15DMW4_S (15W)
- Mfr：GAPTEC Electronic
- Package：Tube
- Type：Isolated Module
- Number of Outputs：1
- Voltage - Input (Min)：9V
- Voltage - Input (Max)：36V
- Voltage - Output 1：5V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：3A
- Power (Watts)：15 W
- Voltage - Isolation：1.5 kV
- Applications：ITE (Commercial)
- Features：Remote On/Off
- Operating Temperature：-40°C ~ 85°C (With Derating)
- Efficiency：87%
- Mounting Type：Through Hole
- Package / Case：6-DIP Module
- Size / Dimension：1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.1mm)
- Supplier Device Package：-
- Control Features：-
- Approval Agency：-
- Standard Number：-
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for 15DMW_2405S1.5
