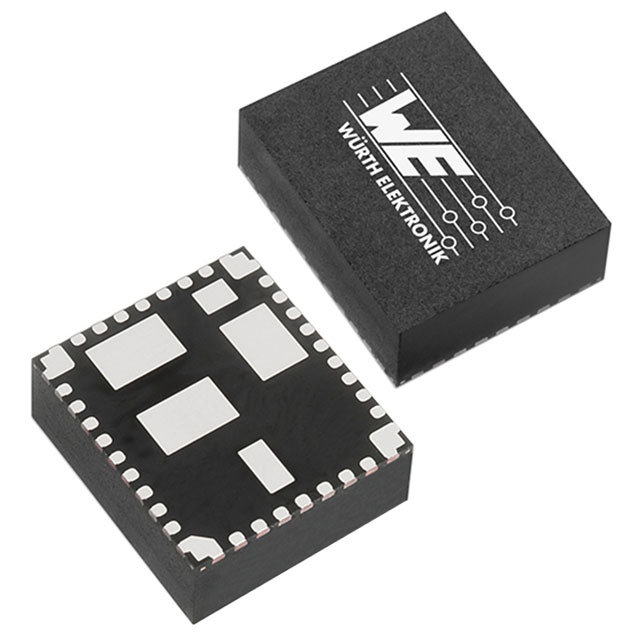

171020302

171020302 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is DC DC CONVERTER 0.8-3.6V. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 171020302

• Description：DC DC CONVERTER 0.8-3.6V
• Series：MagI³C, VDRM
• Mfr：Würth Elektronik
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：2.95V
• Voltage - Input (Max)：6V
• Voltage - Output 1：0.8 ~ 3.6V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：93%
• Mounting Type：Surface Mount
• Package / Case：39-PowerBQFN Module
• Size / Dimension：0.43" L x 0.35" W x 0.11" H (11.0mm x 9.0mm x 2.8mm)
• Supplier Device Package：39-BQFN (11x9)
• Control Features：Enable, Active High
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 171020302
