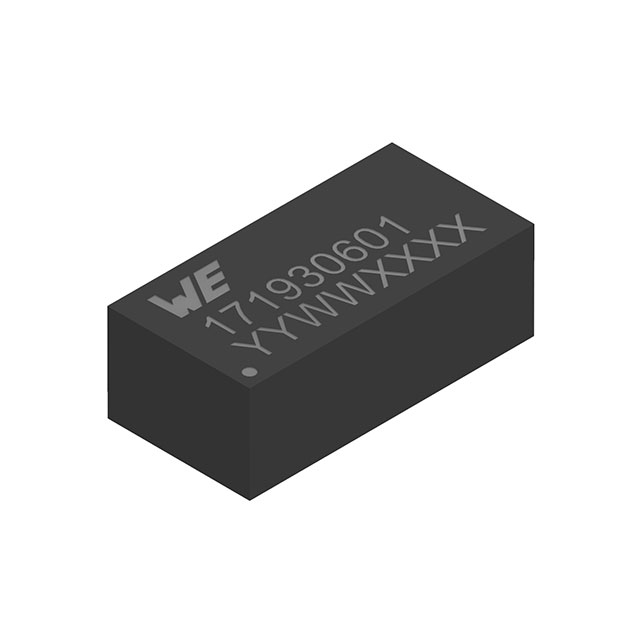

171930601

171930601 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is VDMM VARIABLE STEP DOWN MICROMOD. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 171930601

• Description：VDMM VARIABLE STEP DOWN MICROMOD
• Series：MagI³C, VDMM
• Mfr：Würth Elektronik
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：3.5V
• Voltage - Input (Max)：36V
• Voltage - Output 1：1 ~ 6V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：300mA
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Heat Sink, Remote On/Off
• Operating Temperature：-40°C ~ 105°C
• Efficiency：87%
• Mounting Type：Surface Mount
• Package / Case：9-PowerFLGA Module
• Size / Dimension：0.20" L x 0.10" W x 0.07" H (5.0mm x 2.5mm x 1.8mm)
• Supplier Device Package：9-LGA (5x2.5)
• Control Features：Enable, Active High
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 171930601
