1769405241

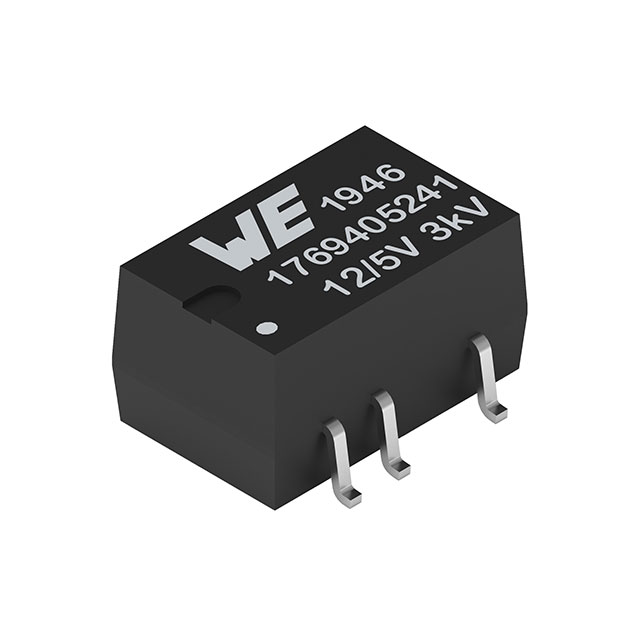

1769405241 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is WPME-FISM FIXED ISOLATED SIP/SMT. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 1769405241

• Description：WPME-FISM FIXED ISOLATED SIP/SMT
• Series：MagI³C, FISM
• Mfr：Würth Elektronik
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：400mA
• Power (Watts)：2 W
• Voltage - Isolation：4 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：86%
• Mounting Type：Surface Mount
• Package / Case：8-SMD Module, 5 Leads
• Size / Dimension：0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
• Supplier Device Package：8-SMT (13.2x8.5)
• Control Features：-
• Approval Agency：cURus
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 1769405241
