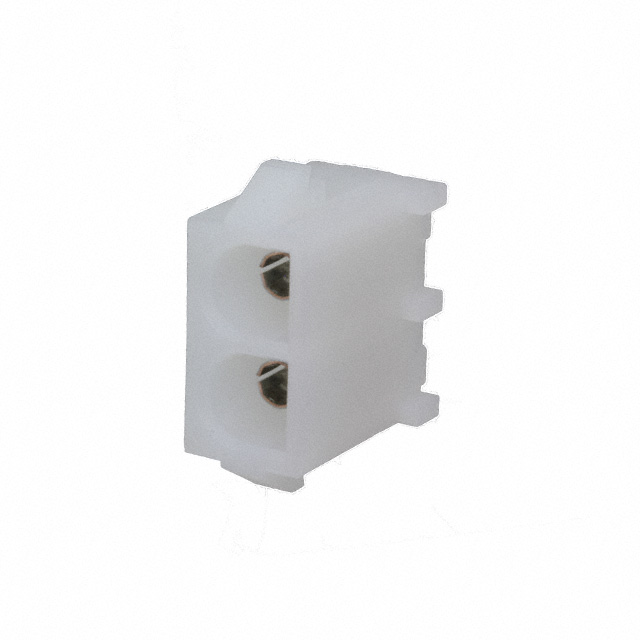

2029000-1

2029000-1 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is 02P UMNL HDR SHRT TAIL, NDH. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 2029000-1

• Description：02P UMNL HDR SHRT TAIL, NDH
• Series：Universal MATE-N-LOK
• Mfr：TE Connectivity AMP Connectors
• Package：Bulk
• Connector Type：Header
• Contact Type：Female Socket
• Style：Board to Board or Cable
• Number of Positions：2
• Number of Positions Loaded：All
• Pitch - Mating：0.250" (6.35mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Locking Ramp
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Insulation Color：Natural
• Insulation Height：0.580" (14.73mm)
• Contact Length - Post：0.130" (3.30mm)
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-2
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：12A
• Voltage Rating：600VAC

Headers, Receptacles, Female Sockets datasheet and documents for 2029000-1
