20525-050E-02

Headers, Receptacles, Female Sockets Overview

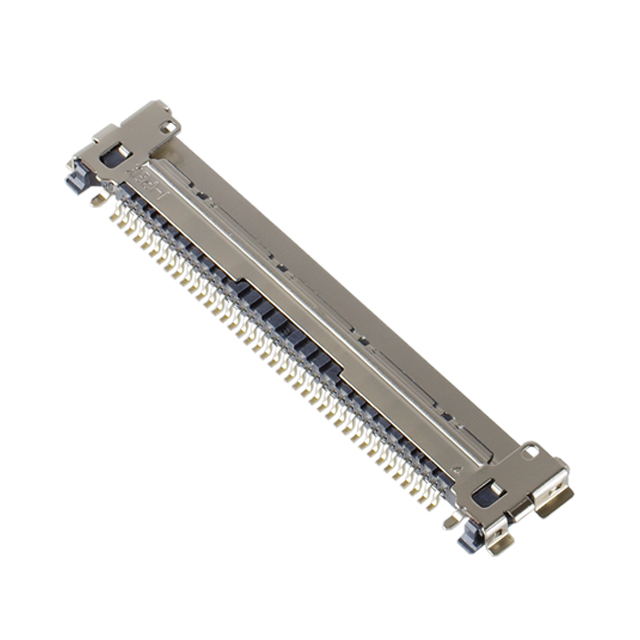

I-PEX 20525-050E-02 is a CABLINE®-CA series receptacle connector designed for micro-coaxial applications. It features a 0.4mm pitch and provides 50 positions in a single row. The component utilizes surface mount, right-angle termination with fixed solder tails. Contact materials consist of phosphor bronze with gold plating on both mating and post surfaces. The housing is constructed from black liquid crystal polymer (LCP) rated UL94 V-0. Electrical ratings include 100VAC voltage and variable current based on wire gauge. Operating temperature ranges from -40°C to 85°C.

Headers, Receptacles, Female Sockets Feature Summary

• Supports high-speed signal transmission suitable for eDP, MIPI, and USB interfaces
• Mechanical locking structure ensures secure connection and vibration resistance
• Compatible with micro-coaxial cables or AWG 36-42 discrete wires
• Compact design facilitates board space efficiency in thin electronic devices

Headers, Receptacles, Female Sockets Applications

• Notebook PC display connections
• Tablet PC internal interconnects
• Flat panel display modules
• Professional TV camera systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and pitch against the target PCB footprint before ordering. Confirm that the selected micro-coaxial cable diameter matches the connector's acceptance range. Ensure the manufacturing partner is an authorized I-PEX distributor to guarantee genuine components. Check RoHS compliance status if required by project specifications. Validate the right-angle orientation fits within the mechanical enclosure constraints.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when a 50-position high-density interface is required for high-frequency signals. The 0.4mm pitch allows for significant channel density in compact form factors. Consider the right-angle SMT profile for vertical board stacking or limited height restrictions. Verify thermal stability requirements align with the 85°C operating limit. Evaluate shielding needs as the series supports EMI reduction strategies.

Headers, Receptacles, Female Sockets Part Context

The 20525-050E-02 belongs to the CABLINE®-CA family, which specializes in ultra-fine pitch micro-coaxial connectivity. This series addresses the industry demand for slim, lightweight electronics while maintaining signal integrity. It serves as a critical link between mainboards and peripheral displays or cameras in modern portable computing devices.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes within the same series include 20525-030E-02 (30-pin) and 20525-060E-02 (60-pin). These variants share identical mechanical and electrical characteristics but differ only in position count. Cross-brand replacements require careful verification of pitch, shielding, and mating force specifications.
