2063-12-01-P2

Headers, Receptacles, Female Sockets Overview

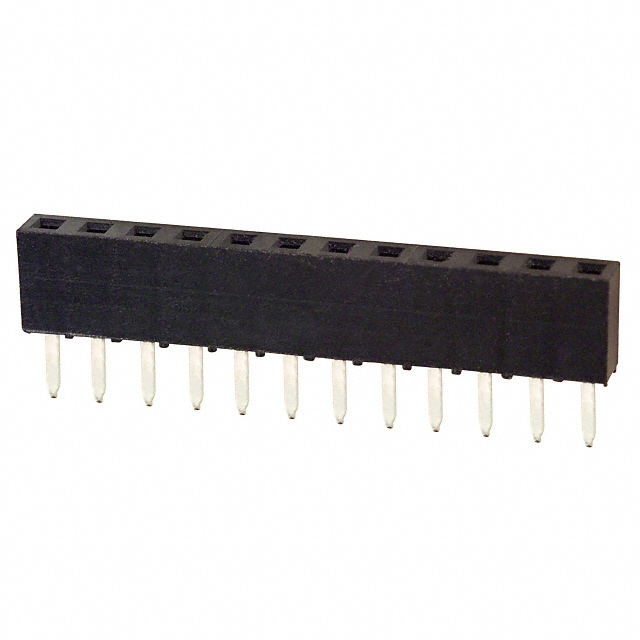

The NorComp 2063-12-01-P2 is a single-row rectangular connector receptacle designed for printed circuit board mounting. It features 12 positions with a 2.00 mm (0.079 inch) contact pitch. The connector utilizes gold-plated contacts and is intended for through-hole termination. This component belongs to the 2063 series, offering a compact solution for vertical board-to-board or cable connections.

Headers, Receptacles, Female Sockets Feature Summary

• Single-row receptacle configuration for space-constrained applications
• Gold-plated contacts ensure reliable signal transmission
• Through-hole termination method for secure PCB attachment

Headers, Receptacles, Female Sockets Applications

• Industrial control systems requiring robust interconnects
• Communication equipment internal wiring
• Consumer electronics assembly

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific part number matches the required 12-position count and 2.00 mm pitch. Confirm that the gold flash plating meets corrosion resistance requirements for the operating environment. Ensure the through-hole footprint aligns with the target PCB design specifications before ordering.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, single-row connector is needed for high-density layouts. Consider the gold plating for environments where oxidation resistance is critical. Evaluate the mechanical retention strength of the through-hole pins against vibration requirements in the final assembly.

Headers, Receptacles, Female Sockets Part Context

This part is part of NorComp's 2063 series of rectangular connectors. The series offers various pin counts and configurations, allowing designers to scale connectivity needs while maintaining consistent form factors and mating interfaces across different product lines within the same family.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 12-position count, 2.00 mm pitch, and through-hole termination style. Verify compatibility with existing mating headers or cables. Cross-reference with other manufacturers' 2.00 mm pitch D-sub or rectangular connectors if NorComp inventory is unavailable.
