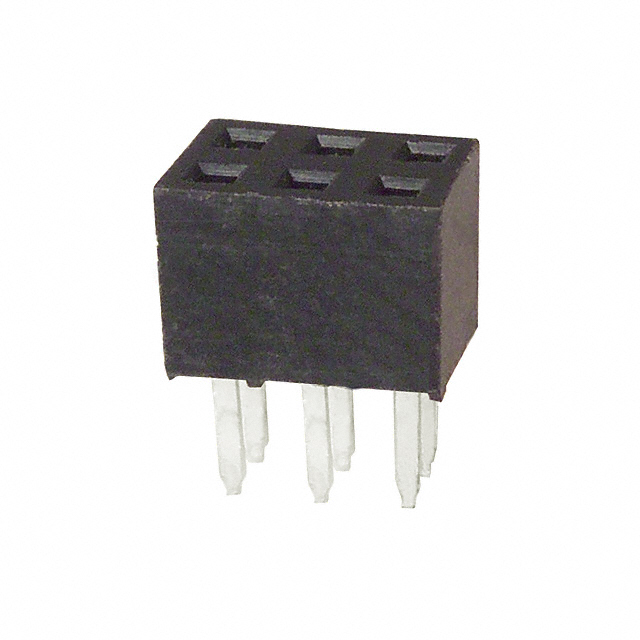

2064-06-01-P2

$0.88

Description：CONN RCPT 6POS 0.079 GOLD PCB
Series：2064
Mfr：NorComp Inc.
Package：Bulk

SKU:5f09790a2c21 Category: Headers, Receptacles, Female Sockets Brand: NorComp Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2064-06-01-P2 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists NorComp Inc.. Its product description is CONN RCPT 6POS 0.079 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 2064-06-01-P2

Description：CONN RCPT 6POS 0.079 GOLD PCB
Series：2064
Mfr：NorComp Inc.
Package：Bulk
Connector Type：Receptacle
Contact Type：Female Socket
Style：-
Number of Positions：6
Number of Positions Loaded：All
Pitch - Mating：0.079" (2.00mm)
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：15.0µin (0.38µm)
Insulation Color：Black
Insulation Height：0.177" (4.50mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin-Lead
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：-
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 2064-06-01-P2

2064-06-01-P2

Headers, Receptacles, Female Sockets Overview

The NorComp 2064-06-01-P2 is a rectangular connector receptacle featuring six positions. It utilizes a surface mount termination style for direct PCB integration. The contacts are constructed from brass and finished with gold plating to ensure reliable signal transmission. The connector pitch is specified at 0.079 inches, supporting compact circuit board layouts.

Headers, Receptacles, Female Sockets Feature Summary

Gold-plated brass contacts provide corrosion resistance and stable electrical conductivity
Surface mount design enables automated assembly and secure PCB attachment
Compact 0.079-inch pitch accommodates dense electronic configurations

Headers, Receptacles, Female Sockets Applications

Industrial control system interconnections
Consumer electronics internal wiring
Telecommunications equipment modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific RoHS compliance status before procurement, as some listings indicate non-compliance while others suggest standard variants. Confirm that the surface mount footprint matches the target PCB design. Ensure the gold contact finish meets the required durability standards for the intended application environment.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, surface-mount solution is required for six-channel connections. The 0.079-inch spacing offers a balance between density and manufacturability. Consider the gold plating for environments requiring long-term reliability without oxidation concerns.

Headers, Receptacles, Female Sockets Part Context

This part belongs to NorComp's rectangular connector family, designed for high-density applications. It serves as a receptacle within mating pairs, typically connecting to corresponding plugs or headers. The series emphasizes robust construction suitable for various commercial and industrial sectors.
