Headers, Receptacles, Female Sockets Overview

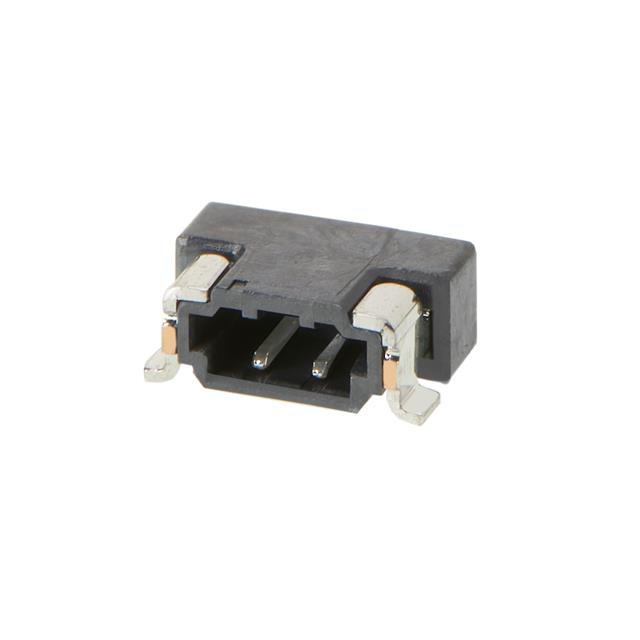

The Molex 2147210020 is a Zero-Hachi header connector featuring a 0.80mm pitch and two positions. It utilizes surface mount right-angle termination with solder contacts plated in matte tin. The housing is constructed from black liquid crystal polymer (LCP) rated UL94 V-0, supporting a maximum current of 1.5A at 30V. Operating temperatures range from -40°C to 85°C. Designed for board-to-cable applications, it incorporates pin locks for secure mating.

Headers, Receptacles, Female Sockets Feature Summary

• Zero-Hachi series design optimized for high-density interconnects
• Right-angle surface mount configuration for space-constrained PCB layouts
• Friction lock mechanism ensures stable connection integrity

Headers, Receptacles, Female Sockets Applications

• Telecommunications equipment signal routing
• General purpose electronic circuit interconnections
• Peripheral device power distribution

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against official Molex documentation to confirm contact plating thickness and reel packaging specifications. Ensure compatibility with mating receptacles within the same Zero-Hachi family. Cross-reference thermal ratings with system requirements before finalizing component selection for production environments.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when board density requires a 0.80mm pitch interface. The right-angle SMD form factor aids in vertical stacking or edge connections. Confirm that the 1.5A current rating aligns with load requirements. Verify that the LCP insulation material meets environmental exposure standards for the target deployment scenario.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Zero-Hachi connector system, engineered for compact digital products and high-speed signal transmission. The series addresses miniaturization trends in consumer electronics and data communication infrastructure, providing reliable interconnect solutions across various industrial sectors.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible housings include Molex part number 2147192020. Verify mechanical dimensions and electrical characteristics against original specifications before substituting any alternative components in existing designs.
