Headers, Receptacles, Female Sockets Overview

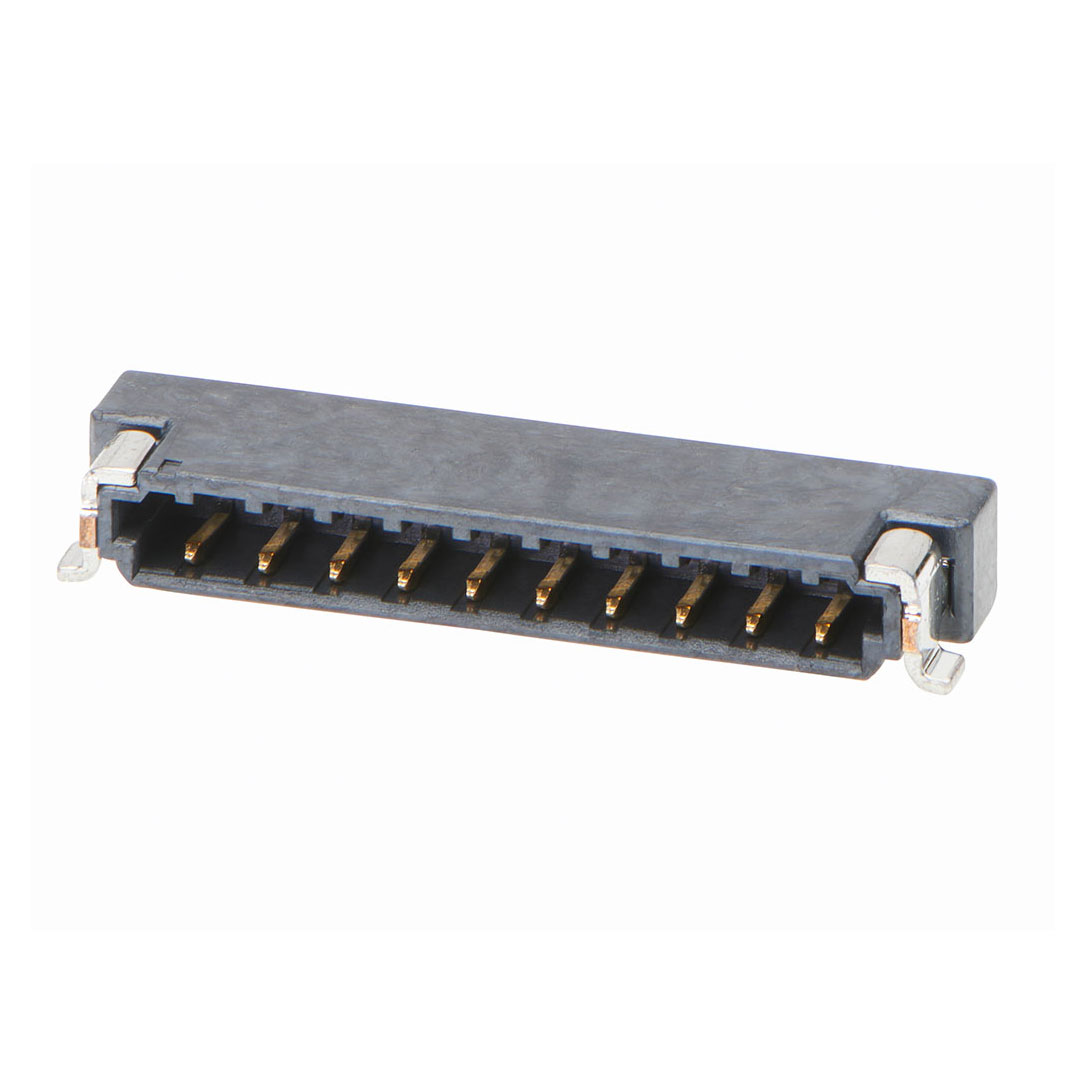

The Molex 2147210101 is a Zero-Hachi shrouded header connector featuring a 0.80mm pitch and ten circuits in a single row configuration. Designed for surface mount assembly, this right-angle male header utilizes gold plating on the contact interface to ensure reliable signal transmission. The component incorporates a friction lock mechanism within its housing to secure mating connections effectively. Packaged in tape and reel format, it supports automated pick-and-place manufacturing processes for high-volume production environments.

Headers, Receptacles, Female Sockets Feature Summary

• Zero-Hachi series design with 0.80mm pitch for compact board layouts
• Gold-plated contacts providing corrosion resistance and stable conductivity
• Friction lock housing structure ensuring secure mating engagement
• Right-angle surface mount termination for vertical PCB integration

Headers, Receptacles, Female Sockets Applications

• High-density consumer electronics assemblies
• Automotive infotainment system interconnects
• Industrial control board signal routing
• Medical device internal circuit connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the official Molex datasheet to confirm pin count, plating thickness, and packaging type. Ensure compatibility with mating receptacles regarding pitch and shroud dimensions. Check RoHS compliance status for the specific batch if required by project regulations. Confirm surface mount footprint alignment with the provided land pattern drawing before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when space constraints require a 0.80mm pitch header with right-angle orientation. The gold plating is suitable for low-current signal applications requiring long-term reliability. Verify that the target PCB design accommodates the surface mount profile and right-angle lead configuration. Consider the friction lock feature if vibration resistance is a priority in the application environment.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Molex Zero-Hachi family, which specializes in ultra-compact interconnect solutions. The series is engineered for applications demanding high I/O density in minimal footprints. The 2147210101 variant specifically addresses the need for ten-position right-angle headers in surface mount designs, bridging the gap between standard and micro-connectors.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 0.80mm pitch, 10-position count, right-angle surface mount form factor, and shrouded design. Verify that alternative manufacturers offer compatible friction lock mechanisms and similar gold plating specifications to maintain electrical performance and mechanical retention.
