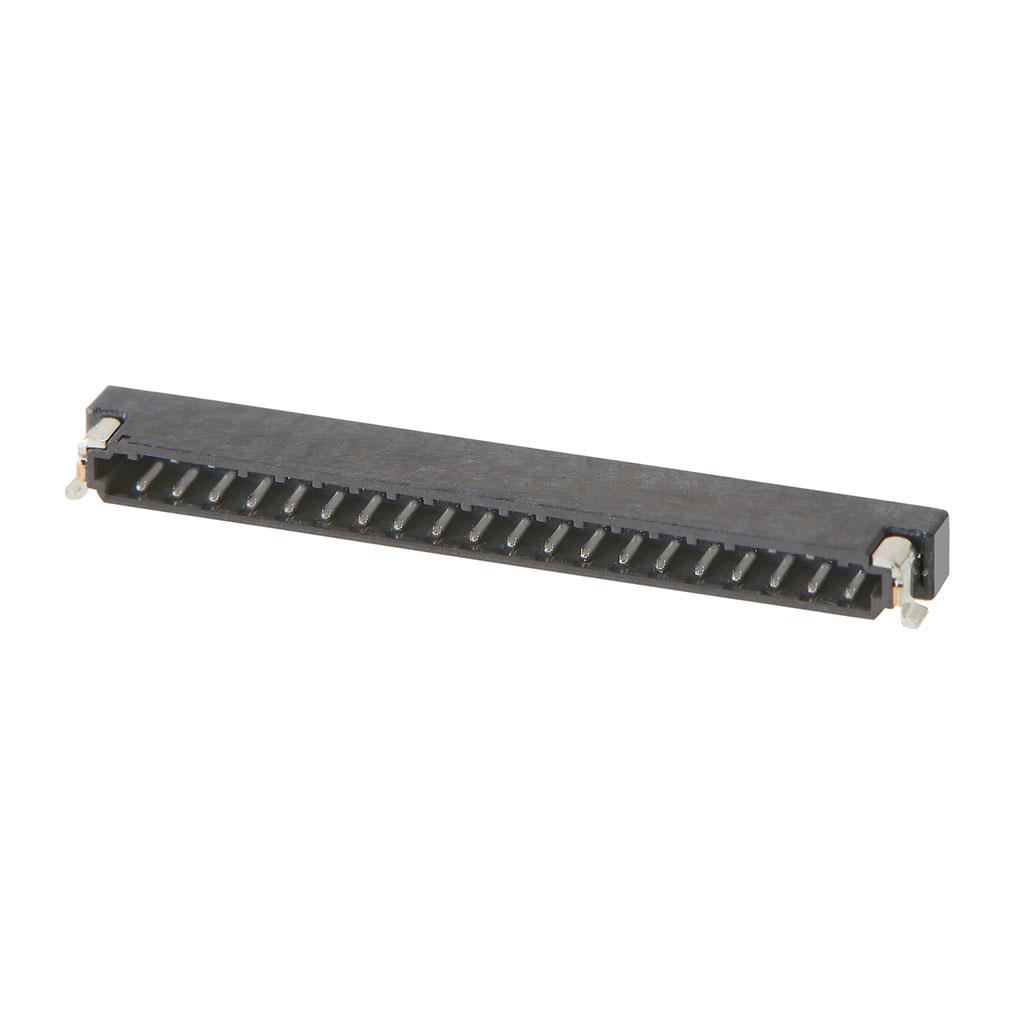

2147210170 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is ZERO-HACHI 0.8 HDR SR RA ETP SN. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for 2147210170
- Description：ZERO-HACHI 0.8 HDR SR RA ETP SN
- Series：Zero-Hachi 214721
- Mfr：Molex
- Package：Bulk
- Connector Type：Header
- Contact Type：Forked
- Style：Board to Cable/Wire
- Number of Positions：17
- Number of Positions Loaded：All
- Pitch - Mating：0.031" (0.80mm)
- Number of Rows：1
- Row Spacing - Mating：-
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Fastening Type：Detent Lock
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：39.4µin (1.00µm)
- Insulation Color：Black
- Insulation Height：0.063" (1.60mm)
- Contact Length - Post：-
- Operating Temperature：-40°C ~ 85°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Solder Retention
- Current Rating (Amps)：1A
- Voltage Rating：30V
Headers, Receptacles, Female Sockets datasheet and documents for 2147210170
Headers, Receptacles, Female Sockets Overview
The Molex 2147210170 is a 17-position header connector from the Zero-Hachi series, designed for surface mount applications. It features right-angle orientation with a 0.80mm (0.031 inch) pitch. The contacts are tin-plated to ensure reliable electrical performance. This receptacle utilizes female sockets and is engineered for secure PCB retention.
Headers, Receptacles, Female Sockets Feature Summary
- Surface mount right-angle design for compact board integration
- Zero-Hachi system provides robust PCB retention
- Dual-point contact feature enhances electrical reliability
Headers, Receptacles, Female Sockets Applications
- Consumer electronics assembly
- Industrial control systems
- General purpose circuit interconnections
Headers, Receptacles, Female Sockets Procurement Notes
Verify the specific suffix code against official Molex documentation to confirm exact plating thickness and material specifications. Ensure compatibility with mating pin headers regarding pitch and current ratings. Confirm RoHS compliance status for the specific manufacturing batch prior to procurement.
Headers, Receptacles, Female Sockets Selection Notes
Select this component for applications requiring high-density connections on limited board space. The right-angle configuration facilitates efficient routing in constrained enclosures. Verify that the operating temperature range meets the environmental requirements of the target application.
Headers, Receptacles, Female Sockets Part Context
This part belongs to the Molex Zero-Hachi family, known for small form factor connectors. The series offers various position counts and termination styles. The 2147210170 specifically addresses needs for 17-position surface mount interfaces with reliable signal transmission.
Headers, Receptacles, Female Sockets Replacement Considerations
Consult official Molex cross-reference guides for verified substitutes. Generic equivalents may not match the precise dual-point contact mechanism or PCB retention strength. Validate mechanical dimensions and mating interface compatibility before substitution.
