22142064

Headers, Receptacles, Female Sockets Overview

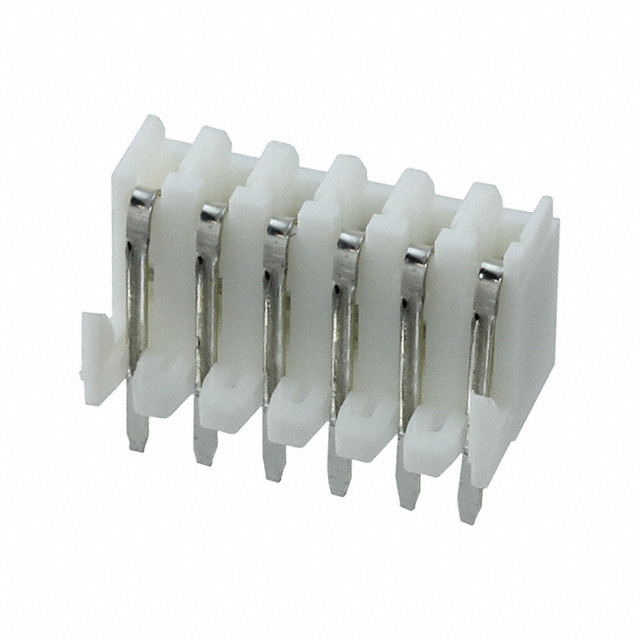

Molex part number 22142064 is a 6-position receptacle connector designed for through-hole termination. The component features a 0.100-inch (2.54mm) pitch and utilizes a bottom entry orientation for PCB mounting. Electrical specifications include a maximum current rating of 2.5A per contact and a voltage rating of 500V. The contacts are constructed from brass with a tin plating finish to ensure reliable conductivity. The housing material is polyamide, providing structural integrity for signal and power transmission applications.

Headers, Receptacles, Female Sockets Feature Summary

• Bottom entry receptacle design facilitates specific PCB layout configurations
• Tin-plated brass contacts provide corrosion resistance and conductivity
• Through-hole termination style ensures secure mechanical attachment

Headers, Receptacles, Female Sockets Applications

• General electronic circuit interconnections
• Signal and power distribution in consumer electronics
• Industrial control panel wiring

Headers, Receptacles, Female Sockets Procurement Notes

Verify the exact manufacturer part number against official Molex documentation before procurement. Confirm that the tin plating specification matches project requirements. Ensure the through-hole footprint aligns with the target PCB design. Check for any recent obsolescence notices or lifecycle changes directly from the manufacturer. Validate compliance certifications if required by the end-use industry standards.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 6-position, 2.54mm pitch through-hole receptacle is required. The bottom entry orientation is critical for specific board stacking or routing needs. Consider the 2.5A current rating and 500V insulation voltage for electrical safety margins. Tin plating is suitable for general environments but may require protection in high-corrosion settings compared to gold options.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to Molex's standard header and socket product family. It is designed to mate with corresponding pin headers. The 2.54mm pitch is a common industry standard for breadboard-compatible and prototyping circuits. The component serves as a female interface for connecting wires or cable assemblies to the printed circuit board.

Headers, Receptacles, Female Sockets Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Cross-referencing requires consulting official Molex replacement guides or distributor compatibility lists. Generic equivalents may match dimensions but often differ in material composition or plating thickness.
