Description：CONN RCPT 4POS 0.1 TIN EDGE MNT
Series：KK254, 4455
Mfr：Molex
Package：Tray

SKU:d1fdbbf8e3e9 Category: Headers, Receptacles, Female Sockets Brand: Molex

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

22152046 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CONN RCPT 4POS 0.1 TIN EDGE MNT. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 22152046

Description：CONN RCPT 4POS 0.1 TIN EDGE MNT
Series：KK254, 4455
Mfr：Molex
Package：Tray
Connector Type：Receptacle
Contact Type：Female, Cat Ear
Style：Board to Board or Cable
Number of Positions：4
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Board Edge, Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Insulation Color：White
Insulation Height：0.185" (4.70mm)
Contact Length - Post：0.132" (3.35mm)
Operating Temperature：-40°C ~ 80°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：Board Hooks
Current Rating (Amps)：2.5A
Voltage Rating：250VAC

Headers, Receptacles, Female Sockets datasheet and documents for 22152046

22152046

Headers, Receptacles, Female Sockets Overview

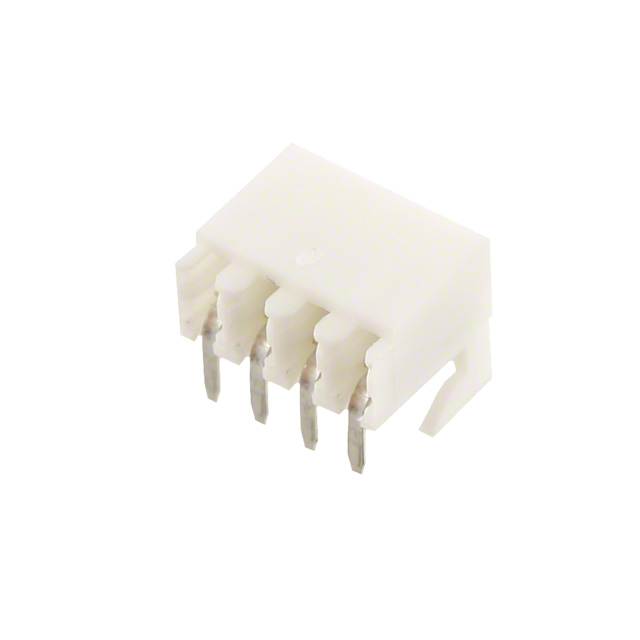

Molex 22152046 is a KK 254 PC Board Connector receptacle from the 4455 series. It features a right-angle, end-to-end stackable design with four circuits and a 2.54mm pitch. The component utilizes tin plating on termination interfaces and includes offset header entry holes for polarization. Designed for through-hole board edge mounting, it supports both power and signal transmission within a single housing.

Headers, Receptacles, Female Sockets Feature Summary

End-to-end stackable architecture for vertical expansion
Offset header entry holes provide positive polarization
Right-angle orientation facilitates board edge integration

Headers, Receptacles, Female Sockets Applications

Board edge interconnection systems
Power and signal distribution modules
Stackable electronic assembly structures

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific part number matches the required circuit count and physical dimensions before procurement. Confirm that the tin plating specification aligns with soldering requirements. Ensure the right-angle orientation fits the mechanical constraints of the target PCB layout to avoid clearance issues during assembly.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector when a right-angle, stackable solution is required for board edge applications. The 2.54mm pitch suits standard density layouts. Verify that the polarization feature meets system alignment needs. Consider the through-hole termination method for robust mechanical attachment compared to surface mount alternatives.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Molex KK 254 series, designed for general-purpose PCB interconnections. The 4455 series specifically addresses applications requiring reliable stacking capabilities. It serves as a standard receptacle option for connecting mating headers in compact electronic assemblies.
