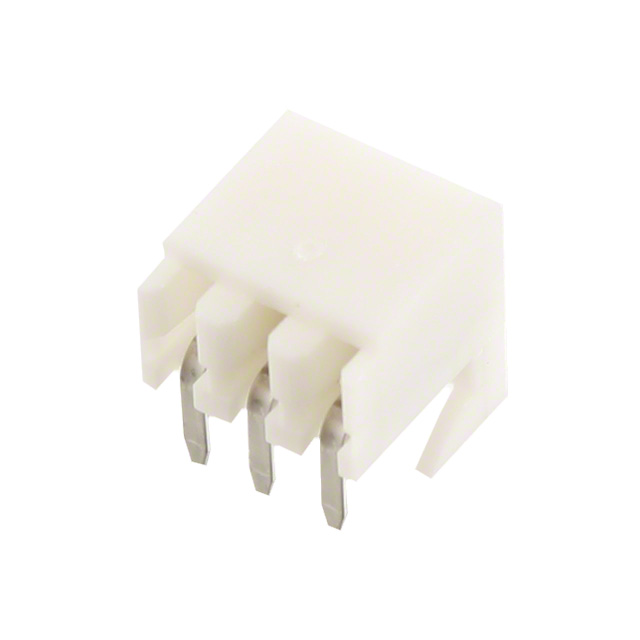

22162030

$0.37

Description：CONN RCPT 3POS 0.1 GOLD EDGE MNT
Series：KK254, 4455
Mfr：Molex
Package：Tray

SKU:f874a84c110b Category: Headers, Receptacles, Female Sockets Brand: Molex

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

22162030 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CONN RCPT 3POS 0.1 GOLD EDGE MNT. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 22162030

Description：CONN RCPT 3POS 0.1 GOLD EDGE MNT
Series：KK254, 4455
Mfr：Molex
Package：Tray
Connector Type：Receptacle
Contact Type：Female, Cat Ear
Style：Board to Board or Cable
Number of Positions：3
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Board Edge, Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：15.0µin (0.38µm)
Insulation Color：White
Insulation Height：0.185" (4.70mm)
Contact Length - Post：0.132" (3.35mm)
Operating Temperature：-40°C ~ 80°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：Board Hooks
Current Rating (Amps)：2.5A
Voltage Rating：250VAC

Headers, Receptacles, Female Sockets datasheet and documents for 22162030

22162030

Headers, Receptacles, Female Sockets Overview

Molex part number 22162030 is a PCB receptacle designed for board-to-board connections. It features a 2.54 mm pitch with one row and three female contacts. The component serves as a standard through-hole mounting solution for electronic assemblies requiring reliable interconnection between printed circuit boards.

Headers, Receptacles, Female Sockets Feature Summary

Provides secure board-to-board electrical connectivity
Features a single row of female receptacle contacts
Utilizes a standard 2.54 mm contact pitch

Headers, Receptacles, Female Sockets Applications

Interconnecting main logic boards to peripheral modules
Attaching display panels to control circuitry
Linking sensor arrays to processing units

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific datasheet revision and mechanical dimensions against the target assembly drawing before procurement. Confirm that the mating connector matches the 2.54 mm pitch and three-contact configuration. Ensure the supplier provides original manufacturer documentation to validate authenticity and compliance status.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, single-row female header is required for rigid board-to-board applications. Consider the 2.54 mm pitch compatibility with existing male counterparts. Evaluate mechanical retention needs and ensure the through-hole footprint aligns with the PCB layout constraints.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to Molex's standard connector portfolio, typically utilized in consumer electronics and industrial control systems. It pairs with corresponding male pins or headers to form stable electrical pathways. The design prioritizes space efficiency and consistent signal integrity across multiple connection points.
