22162040

Headers, Receptacles, Female Sockets Overview

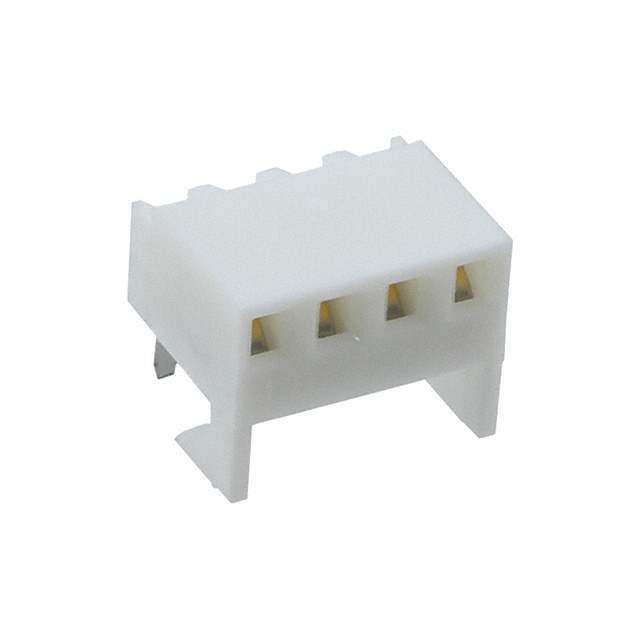

Molex part number 22162040 is a 4-position receptacle connector from the KK254 series. It features a 0.100 inch (2.54mm) pitch and utilizes gold plating on the mating interface with a thickness of 15.0µin (0.38µm). The connector is designed for board edge, through-hole, right-angle mounting. Rated for 250VAC and 2.5A, it operates within a temperature range of -40°C to 80°C. The housing is made of white polyamide (PA/nylon) with UL94 V-0 flammability rating. Mating contacts are square-shaped female cat-ear types, while termination contacts are tin-plated brass.

Headers, Receptacles, Female Sockets Feature Summary

• Board edge mounting capability with right-angle orientation for efficient PCB layout
• Push-pull locking mechanism ensures secure connection to mating parts
• Gold-plated mating contacts provide reliable signal transmission and corrosion resistance
• End-to-end stackable design allows for compact multi-row configurations

Headers, Receptacles, Female Sockets Applications

• Automotive electronic systems
• General purpose industrial equipment
• Medical instrumentation
• Telecommunications infrastructure

Headers, Receptacles, Female Sockets Procurement Notes

When sourcing this component, verify the manufacturer part number against official Molex documentation to ensure authenticity. Confirm that the received items match the specified 4-position configuration and right-angle orientation. Check for any recent Product Change Notices (PCN) regarding material or manufacturing location updates, as indicated in public records. Ensure compliance with RoHS directives if required by your specific application standards. Always cross-reference the datasheet specifications for electrical ratings before integration.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector when a low-profile, right-angle board edge solution is required for 2.54mm pitch applications. The KK254 series offers robust mechanical retention via push-pull latches. Consider the 2.5A current rating and 250VAC voltage limit for circuit compatibility. The white polyamide insulation provides good dielectric properties. Verify that the PCB thickness accommodates the recommended tail length for reliable soldering. This component is suitable for environments requiring moderate operating temperatures up to 80°C.

Headers, Receptacles, Female Sockets Part Context

The 22162040 belongs to the KK254 family, a widely used line of PC board connectors known for their versatility and reliability. This series supports various contact counts and mounting styles, making it a standard choice for general interconnect needs. The 4455 sub-series designation indicates specific stacking and orientation characteristics. As a receptacle, it pairs with corresponding headers to form complete connector assemblies. Its long-term availability status makes it a stable option for ongoing production designs.

Headers, Receptacles, Female Sockets Replacement Considerations

Publicly confirmed substitute part numbers for direct replacement are not available in the provided documentation. Engineers should consult Molex's official cross-reference tools or contact technical support for compatible alternatives. Ensure that any substitute maintains the same 2.54mm pitch, 4-position count, and right-angle board edge mounting style. Electrical ratings and mechanical dimensions must also match to guarantee functional equivalence.
