2369833-3

$21.56

Description：RECEPT ASSY, RA, 168 POS, SLIVER
Series：Silver 2.0
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f7cbb2ce917a Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2369833-3 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is RECEPT ASSY, RA, 168 POS, SLIVER. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 2369833-3

Description：RECEPT ASSY, RA, 168 POS, SLIVER
Series：Silver 2.0
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：168
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.024" (0.60mm)
Read Out：Dual
Features：Board Guide, Solder Retention
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-55°C ~ 85°C

Edgeboard Connectors datasheet and documents for 2369833-3

2369833-3

Edgeboard Connectors Overview

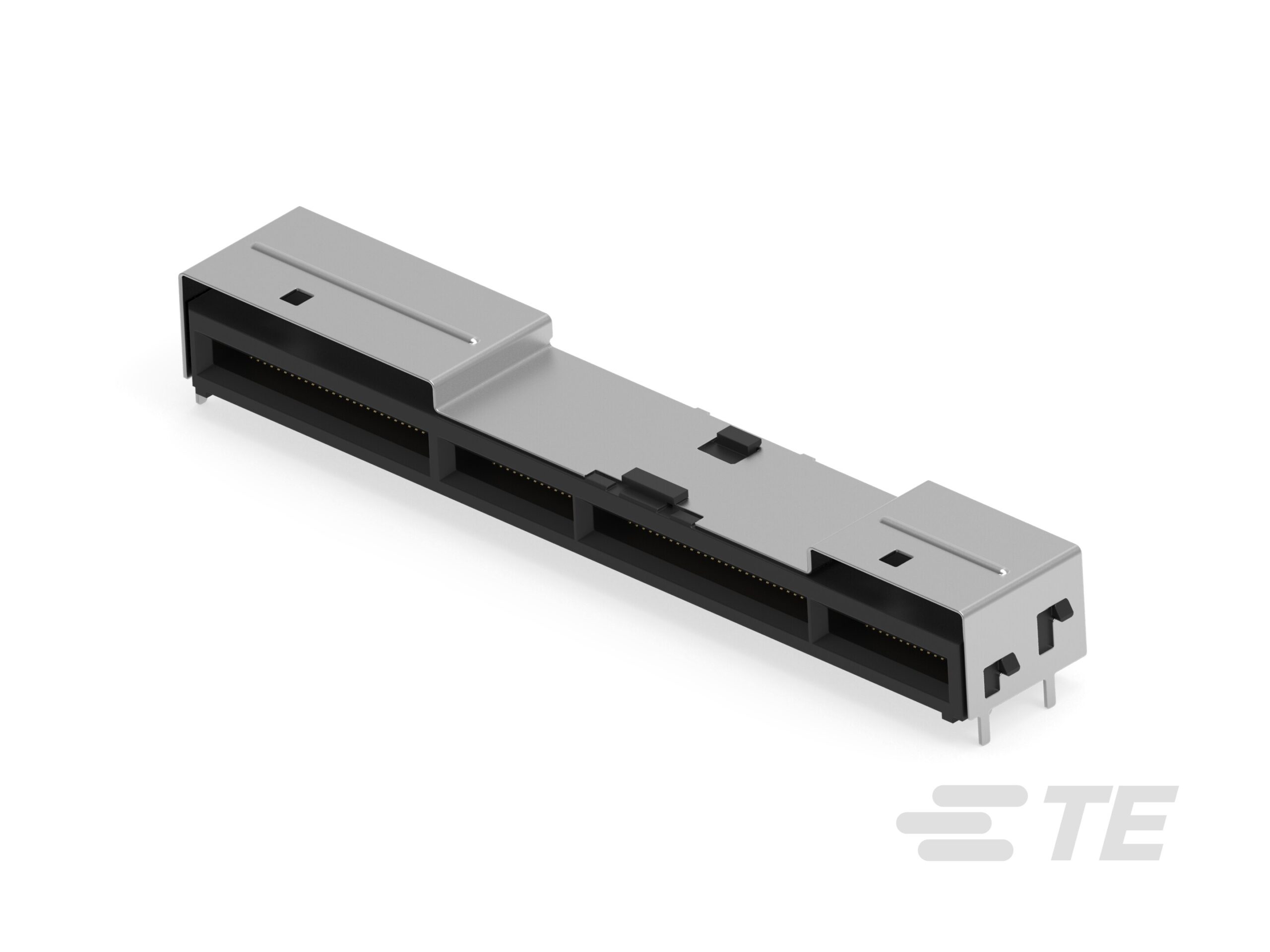

The TE Connectivity AMP Connectors part number 2369833-3 is a receptacle assembly designed for internal I/O applications. It features a sliver form factor with 168 positions and supports a data rate of 16 Gb/s. The connector utilizes a right-angle, surface mount installation style suitable for cable-to-board connections. Constructed from liquid crystal polymer (LCP) housing material, it meets UL 94 V-0 flammability ratings. This component accommodates dual-edge circuit cards within the Silver 2.0 series.

Edgeboard Connectors Feature Summary

Supports high-speed data transmission up to 16 Gb/s
Accommodates dual-edge circuit cards for increased signal density
Right-angle surface mount design for compact integration

Edgeboard Connectors Applications

Computing systems
Telecommunications equipment
Industrial control interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official TE Connectivity documentation to ensure correct housing and contact configurations. Confirm that the required mating components are compatible with the Silver 2.0 series specifications. Check for any recent packing specification changes or product notice updates prior to ordering.

Edgeboard Connectors Selection Notes

Select this component when space constraints require a sliver profile with high pin counts. Ensure the PCB layout supports right-angle surface mount termination. Verify that the operating environment temperature ranges align with the LCP material properties and that the dual-edge card interface matches the system design requirements.

Edgeboard Connectors Part Context

This receptacle belongs to the Silver 2.0 series, which is engineered for high-density interconnects in demanding environments. The series provides reliable performance for critical data lines in computing and telecom sectors. The 168-position capacity allows for significant signal routing within a minimal footprint compared to standard connectors.
