2379397-7

Edgeboard Connectors Overview

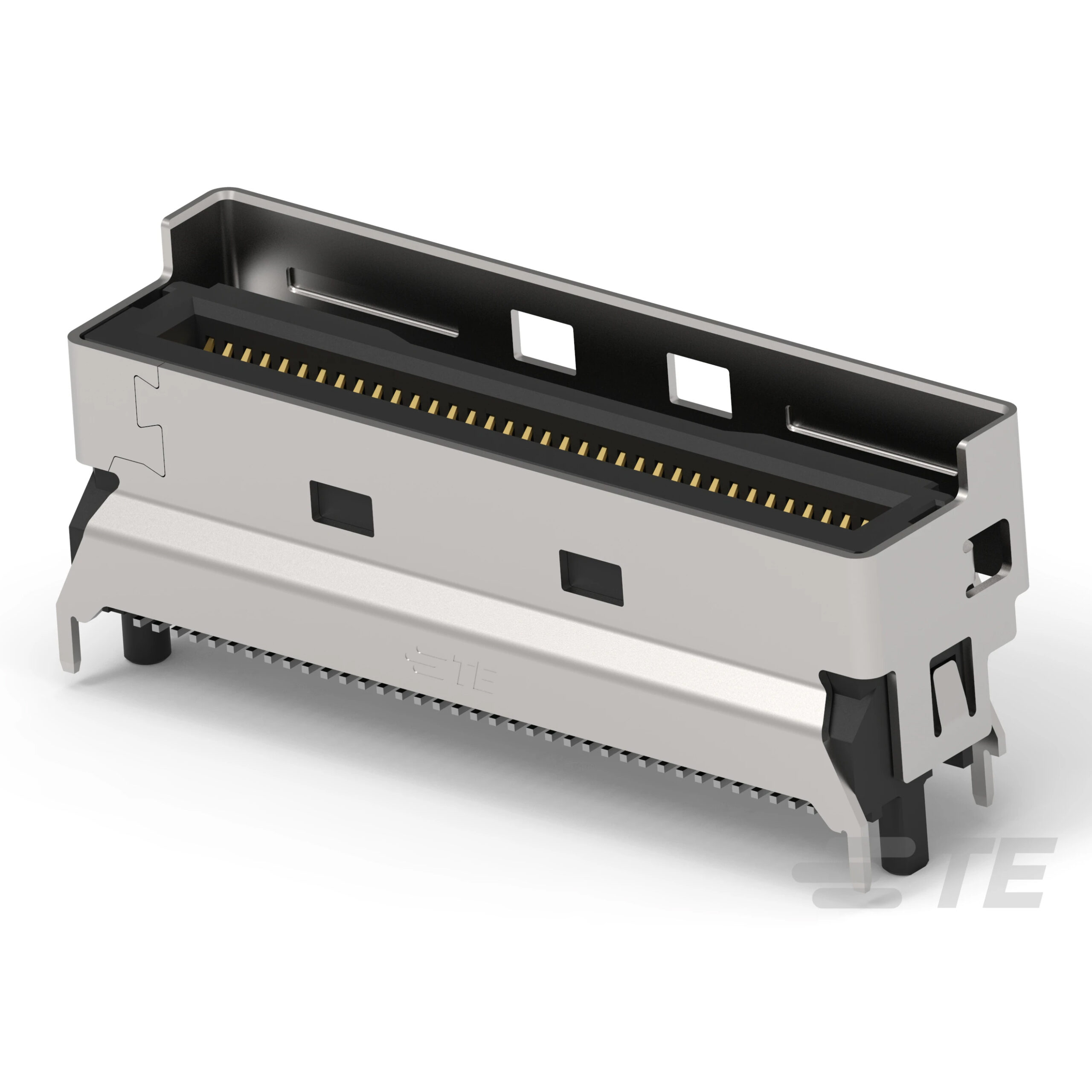

The TE Connectivity AMP Connectors part number 2379397-7 is a 74-position female card edge connector belonging to the Mini Cool Edge IO (MCIO) series. It features dual-edge contact configuration with a 0.60mm pitch and gold-plated copper alloy contacts. Designed for surface mount installation, this component supports high-density interconnection applications with an operating temperature range of -55°C to 85°C.

Edgeboard Connectors Feature Summary

• Dual-edge card edge design for high-density signal transmission
• Gold-plated copper alloy contacts ensure reliable conductivity
• Surface mount termination facilitates automated PCB assembly

Edgeboard Connectors Applications

• High-speed data communication interfaces
• Server backplane interconnections
• Storage area network equipment
• Telecommunications infrastructure modules

Edgeboard Connectors Procurement Notes

Verify the specific datasheet revision and RoHS compliance status directly with TE Connectivity before procurement. Confirm that the gold plating thickness meets the required durability standards for the intended application environment. Ensure compatibility with existing SMT reflow profiles and handling procedures for sensitive components.

Edgeboard Connectors Selection Notes

Select this component when a 74-position female interface with a 0.60mm pitch is required. The dual-edge configuration maximizes pin count within limited board space. Consider the -55°C to 85°C operational range for environmental suitability. Verify mechanical retention requirements against the specific PCB layout constraints.

Edgeboard Connectors Part Context

This connector belongs to the MCIO family, engineered for demanding digital interconnects. It replaces older generation connectors by offering higher density and improved signal integrity. The series is widely adopted in enterprise networking and storage systems requiring robust, high-speed data pathways.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other 74-position dual-edge female connectors from TE Connectivity or compatible manufacturers. Verify identical pitch, contact geometry, and mounting dimensions before substitution. Cross-reference electrical ratings and thermal specifications to ensure functional equivalence.

Edgeboard Connectors FAQ

What is the contact material used in this connector?

The contacts are manufactured from copper alloy and feature a gold plating finish.

Does this connector support surface mount technology?

Yes, the 2379397-7 is designed specifically for surface mount installation on printed circuit boards.
