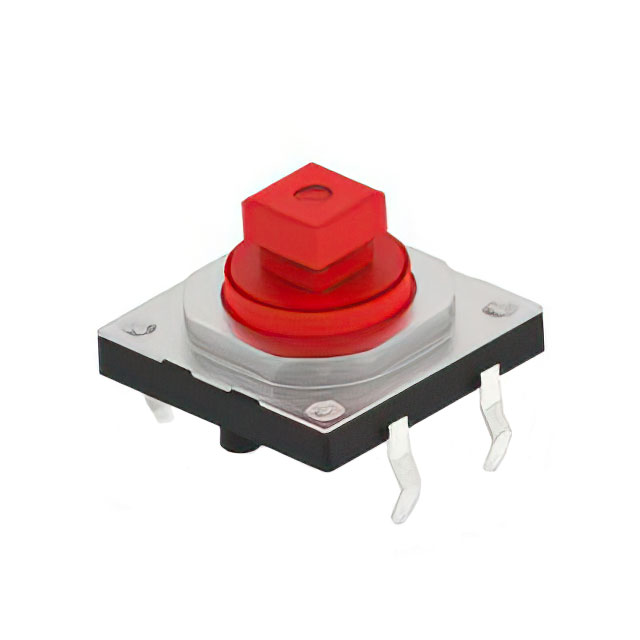

2425754-1

2425754-1 is listed in the Tactile Switches range at ChipApex. The manufacturer field lists TE Connectivity ALCOSWITCH Switches. Its product description is SWITCH TACTILE SPST-NO 0.05A 12V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for 2425754-1

• Description：SWITCH TACTILE SPST-NO 0.05A 12V
• Series：-
• Mfr：TE Connectivity ALCOSWITCH Switches
• Package：Tray
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 12VDC
• Actuator Type：Plunger for Cap
• Mounting Type：Through Hole
• Actuator Height off PCB, Vertical：7.30mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：PC Pin
• Outline：12.00mm x 12.00mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：260gf
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：-
• Operating Temperature：-40°C ~ 90°C

Tactile Switches datasheet and documents for 2425754-1
