243-002-542-101

Edgeboard Connectors Overview

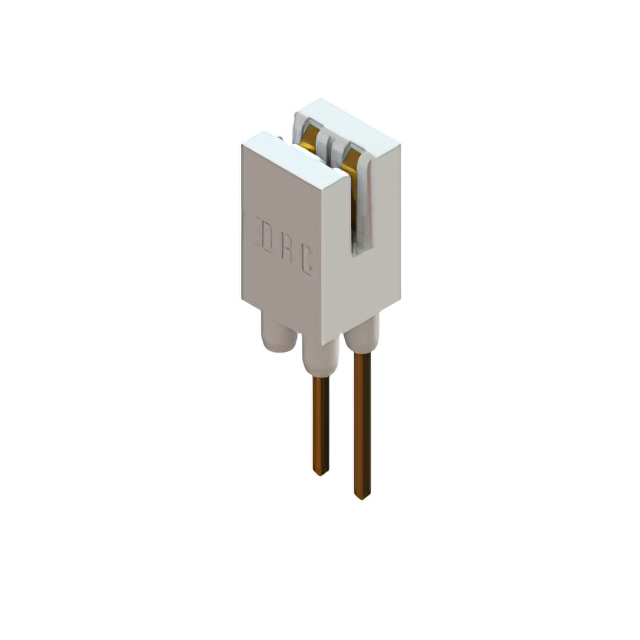

The EDAC Inc. 243-002-542-101 is a single-row female card edge connector designed for board-to-board interconnections. It features a 0.200-inch (5.08mm) contact pitch and accommodates printed circuit boards with a thickness of 0.062 inches (1.57mm). The component utilizes gold-plated contacts to ensure reliable signal transmission and corrosion resistance. Rated for operation within a temperature range of -65°C to 125°C, this connector supports two positions and is constructed from durable materials suitable for demanding electronic environments.

Edgeboard Connectors Feature Summary

• Single row female configuration for standard card edge applications
• Gold-plated contacts for enhanced conductivity and durability
• Wide operating temperature range supporting extreme conditions

Edgeboard Connectors Applications

• Board-to-board interconnection systems
• Electronic modules requiring high reliability
• Industrial control equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact mechanical dimensions and plating specifications. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm that the single-row, two-position configuration aligns with the design requirements before procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with a 0.200-inch pitch is required. It is suitable for applications needing robust performance across a wide thermal spectrum. Consider the two-contact capacity and vertical mounting style when designing the enclosure layout.

Edgeboard Connectors Part Context

This part belongs to the EDAC 243 series of card edge connectors. The series offers various configurations for different board thicknesses and contact counts. The 243-002-542-101 specifically addresses needs for low-count, high-pitch connections in compact form factors.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference lists for verified substitutes. Generic equivalents may not match the precise 0.200-inch pitch or 0.062-inch board thickness tolerance.
