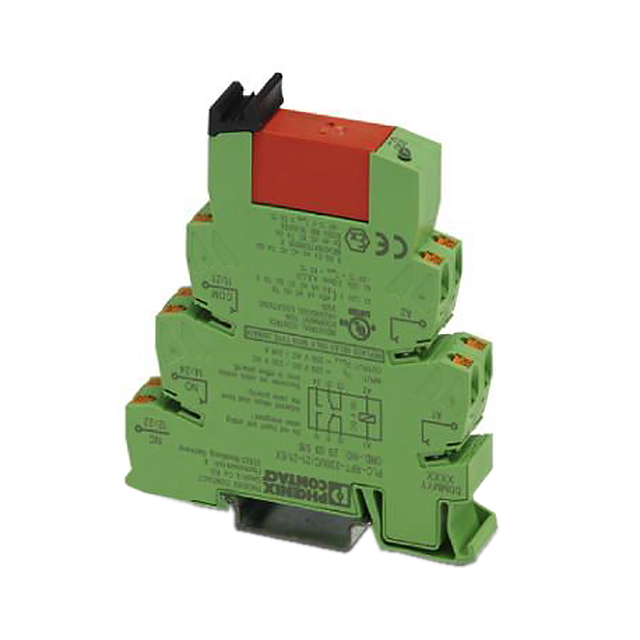

2909516

2909516 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Phoenix Contact. Its product description is RELAY GEN PURPOSE DPDT 6A 230V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 2909516

• Description：RELAY GEN PURPOSE DPDT 6A 230V
• Series：PLC-RPT
• Mfr：Phoenix Contact
• Package：Bulk
• Mounting Type：DIN Rail
• Coil Voltage：230VAC/DC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：6:00 AM
• Switching Voltage：250VAC, 250VDC - Max
• Load - Max Switching：-
• Coil Current：4.5 mA
• Coil Type：Non Latching
• Features：Lighted Indicator, Socket Included
• Termination Style：Spring Terminal
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：-
• Must Release Voltage：-
• Operating Temperature：-40°C ~ 55°C
• Contact Material：Silver Nickel (AgNi)
• Approval Agency：CE, UKCA
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：7 ms
• Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for 2909516
