3-2337939-6

$6.17

Description：CONN PCI EXP FMALE 64POS 0.039
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tray

SKU:1e0b3beab9c4 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

3-2337939-6 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PCI EXP FMALE 64POS 0.039. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 3-2337939-6

Description：CONN PCI EXP FMALE 64POS 0.039
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tray
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：11; 21
Number of Positions：64
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.039" (1.00mm)
Read Out：Dual
Features：Board Guide, Locking Ramp, Pick and Place, Solder Retention
Mounting Type：Surface Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：Flash
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 85°C

Edgeboard Connectors datasheet and documents for 3-2337939-6

3-2337939-6

Edgeboard Connectors Overview

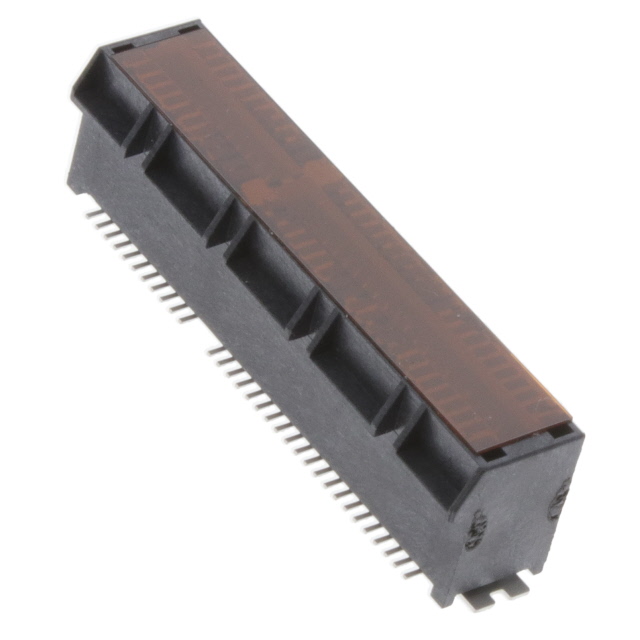

The TE Connectivity AMP Connectors part number 3-2337939-6 is a standard card edge connector designed for PCI Express Gen 4 applications. It features a female configuration with 64 positions and a contact pitch of 0.039 inches (1.00 mm). The connector utilizes gold-plated copper alloy contacts to ensure superior conductivity and signal integrity. It is constructed with a black insulator and supports surface mount technology (SMT) for PCB integration.

Edgeboard Connectors Feature Summary

Supports high-speed data transmission for next-generation CPU system applications
Features gold-plated contacts for reliable electrical performance
Designed for surface mount installation on printed circuit boards

Edgeboard Connectors Applications

PCI Express Gen 4 expansion cards
High-bandwidth peripheral interconnects
Server and storage system backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact mechanical dimensions, termination style, and material specifications. Ensure compatibility with the target PCB layout and mating connector requirements before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when designing systems requiring PCIe Gen 4 compliance and robust signal integrity. Consider the SMT mounting profile and board thickness constraints during the mechanical design phase to ensure proper engagement with the mating device.

Edgeboard Connectors Part Context

This component belongs to the standard card edge connector family from TE Connectivity. It is engineered to support high-speed digital signals, facilitating efficient data transfer in modern computing architectures that demand increased bandwidth and reliability.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official cross-reference guide or datasheet for verified equivalent components.
