3-2362375-4

Edgeboard Connectors Overview

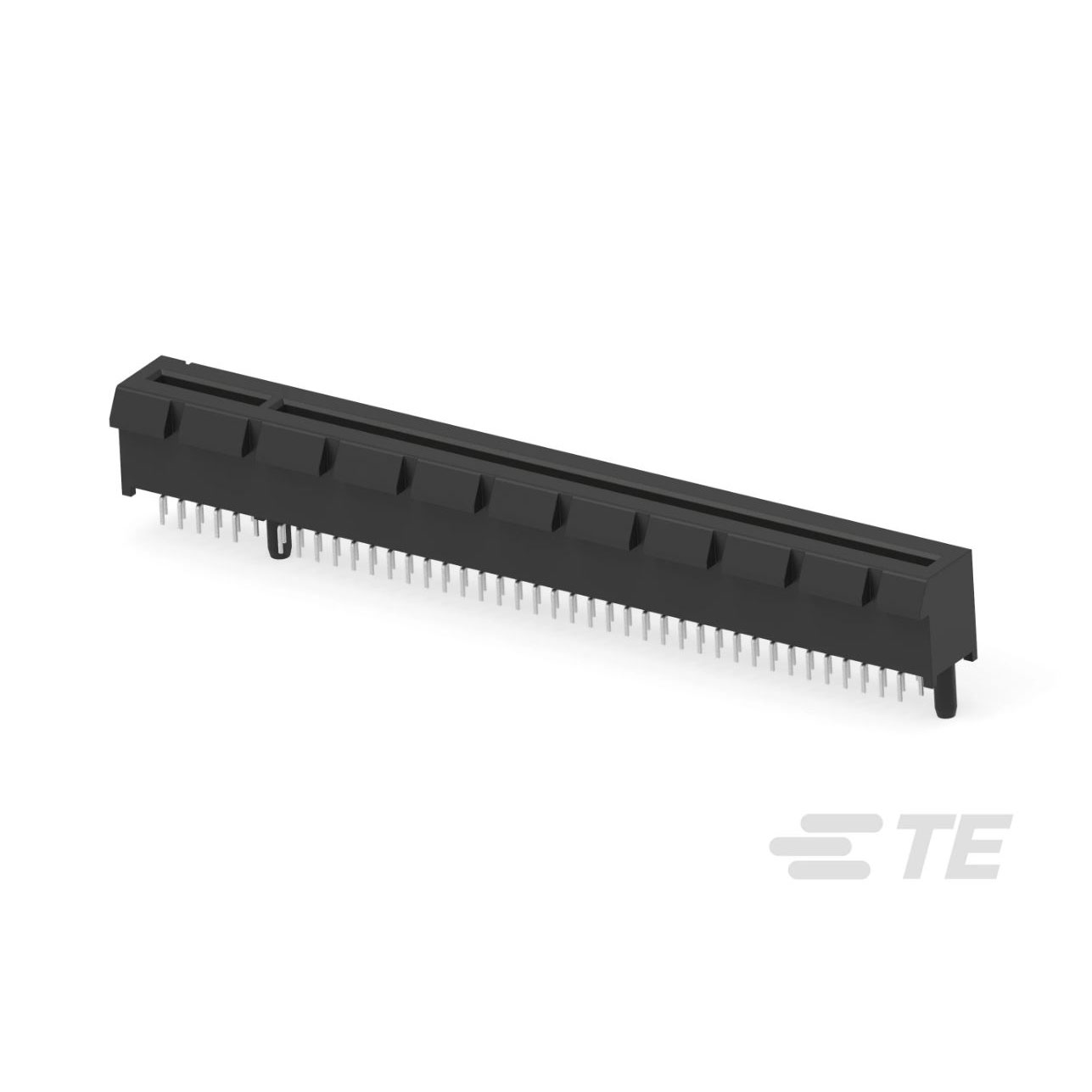

The TE Connectivity AMP Connectors part number 3-2362375-4 is a board-to-board connector designed for PCI Express Generation 4 applications. It features a female contact configuration with 164 positions arranged in a dual row. The connector utilizes a vertical through-hole mounting style with a centerline spacing of 1.00 mm (0.039 inches). The housing is constructed from black thermoplastic material, and the contacts are gold-plated to ensure reliable signal integrity. This component supports high-speed data transmission between printed circuit boards.

Edgeboard Connectors Feature Summary

• Supports PCI Express Generation 4 high-speed signal transmission standards
• Features 164-position dual-row female contact configuration
• Utilizes vertical through-hole mounting for secure PCB integration

Edgeboard Connectors Applications

• High-performance computing systems requiring PCIe Gen 4 connectivity
• Server backplanes and riser card interconnections
• Industrial equipment with high-bandwidth data transfer needs

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix and packaging quantity directly with the manufacturer or authorized distributors before placing orders. Confirm that the requested variant matches the required pin count and contact plating specifications. Ensure compatibility with existing PCB footprint designs and mating connector requirements. Check for any recent lifecycle status updates or obsolescence notices associated with this specific part number.

Edgeboard Connectors Selection Notes

Select this component when designing systems that require robust connections for PCI Express Generation 4 interfaces. The 164-position layout provides ample I/O channels for complex motherboard architectures. Consider the vertical form factor for space-constrained environments where height is limited but board-to-board distance is fixed. Verify thermal management capabilities and mechanical retention strength for the intended operational environment.

Edgeboard Connectors Part Context

This connector belongs to the broader family of board-to-board interconnect solutions offered by TE Connectivity. It is specifically engineered to meet the rigorous electrical performance requirements of modern computing platforms. The design emphasizes signal integrity and mechanical durability, making it suitable for demanding industrial and commercial applications where reliability is critical.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers: None identified.
