3-2381578-9

Edgeboard Connectors Overview

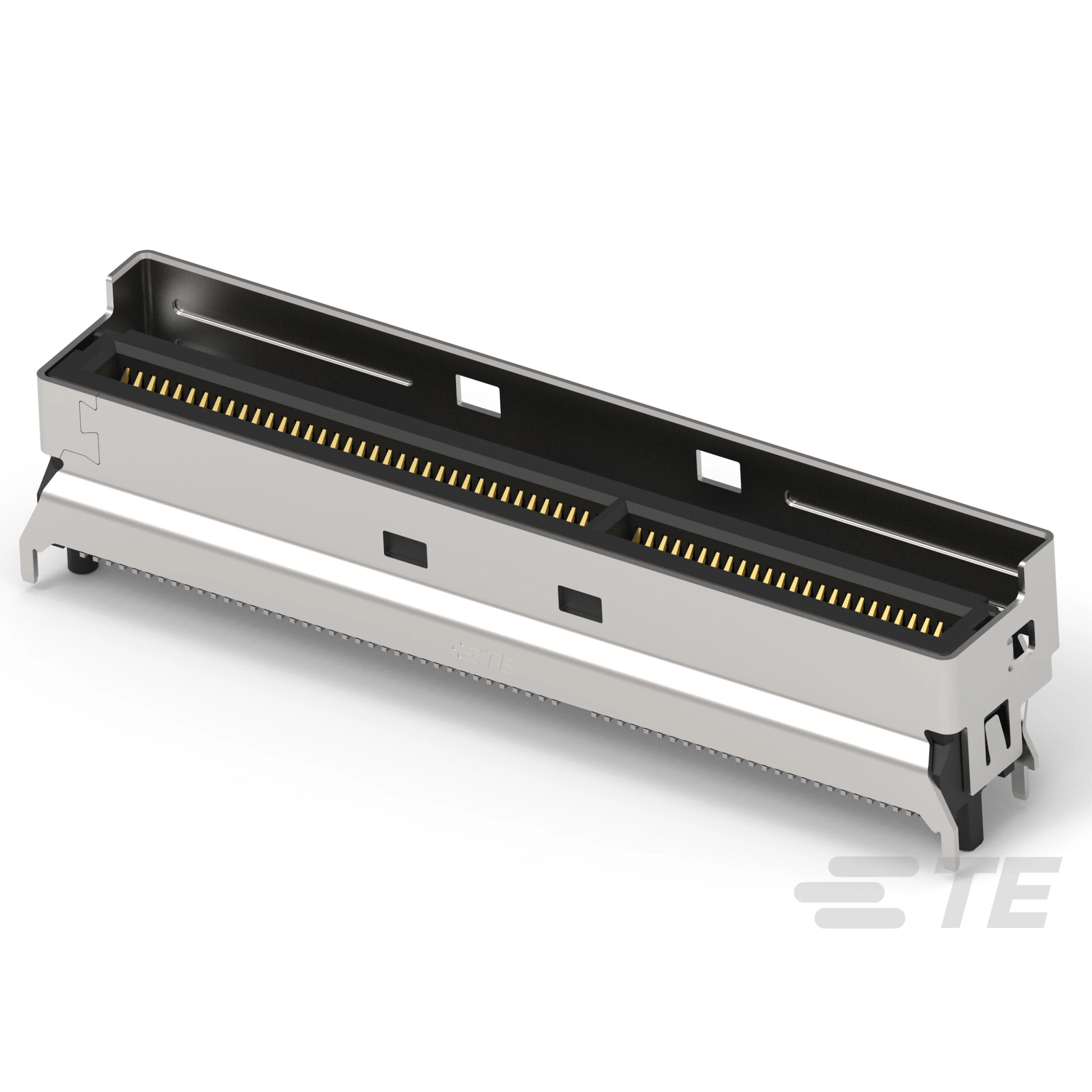

The 3-2381578-9 is a Mini Cool Edge (MCIO) integrated connector manufactured by TE Connectivity AMP Connectors. It features a 124-position female configuration with a 0.60mm pitch. The component utilizes dual-edge gold contacts and is designed for vertical termination. This edgeboard connector supports high-density interconnection requirements in electronic assemblies.

Edgeboard Connectors Feature Summary

• Dual-edge contact design for enhanced signal integrity
• Integrated construction for simplified assembly
• Gold-plated contacts for reliable conductivity

Edgeboard Connectors Applications

• High-density board-to-board interconnects
• Industrial control systems
• Telecommunications equipment

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and mating force specifications. Ensure compatibility with corresponding header components within the Mini Cool Edge series. Confirm RoHS compliance status through official manufacturer documentation prior to integration into final products.

Edgeboard Connectors Selection Notes

Select this component for applications requiring high pin counts in compact footprints. The 0.60mm pitch allows for dense layout configurations. Verify that the vertical termination style aligns with the target PCB orientation and assembly process capabilities.

Edgeboard Connectors Part Context

This part belongs to the Mini Cool Edge series, designed for space-constrained environments. It offers a robust solution for high-speed data transmission. The integrated design reduces assembly steps compared to separate housing and contact implementations.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Generic equivalents may not match the precise 0.60mm pitch or dual-edge contact geometry required for proper mating.
