3-5147490-5

Edgeboard Connectors Overview

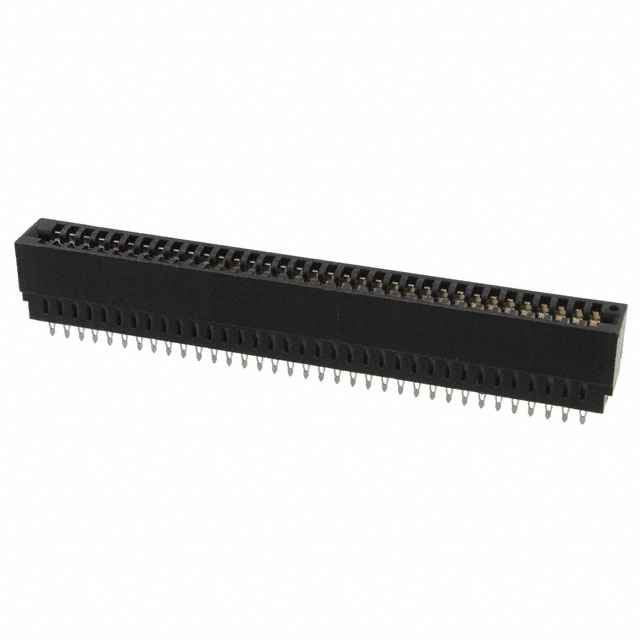

The TE Connectivity AMP Connectors part number 3-5147490-5 is a dual edge card edge connector designed for press-fit termination. It features 35 positions with a 2.54mm (0.100 inch) pitch. The contacts are gold-plated to ensure reliable signal transmission, while the insulation body is constructed from black glass-filled polyester. This component supports vertical board-to-board or cable connections and operates within a temperature range of -65°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual edge configuration accommodates double-sided PCBs for high-density interconnect applications.
• Press-fit termination method eliminates soldering requirements, streamlining assembly processes.
• Gold contact plating provides corrosion resistance and stable electrical performance over time.

Edgeboard Connectors Applications

• High-density backplane interconnections in telecommunications infrastructure
• Industrial control system board-to-board linking
• Computing hardware internal module integration

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm pin count and termination style match project requirements. Confirm RoHS compliance status and moisture sensitivity level before storage. Check for obsolescence notices as TE Connectivity frequently updates product lifecycles. Ensure compatibility with existing panel mounting holes and mating edge card dimensions.

Edgeboard Connectors Selection Notes

Select this component when press-fit technology is preferred over soldering for repeated reworkability. The 35-position count suits moderate density needs compared to higher-pin alternatives. Verify that the 2.54mm pitch aligns with the target PCB trace spacing. Consider the black insulation color for visual identification against lighter circuit boards.

Edgeboard Connectors Part Context

This connector belongs to the AMP PACE Standard Edge Connector family, which focuses on robust mechanical retention and electrical stability. The series is widely utilized in demanding environments requiring durable connections without thermal stress from soldering. It complements other components in the same modular ecosystem.

Edgeboard Connectors Replacement Considerations

Direct substitutes include 4-5147490-3 for different position counts within the same series. Cross-reference TE Connectivity documentation for updated revisions. No third-party equivalents are officially confirmed for direct replacement without engineering validation.

Edgeboard Connectors FAQ

What is the contact material composition?

The contacts utilize a copper alloy base with a specified gold plating finish for enhanced conductivity and durability.

Is this connector suitable for high-frequency signals?

While optimized for general digital interconnects, specific high-frequency performance requires consulting the full datasheet for impedance characteristics.
