302-050-258-201

Edgeboard Connectors Overview

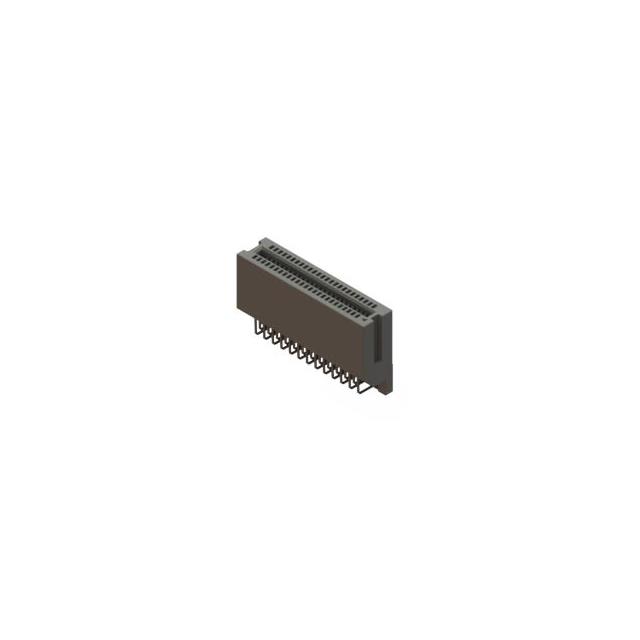

The EDAC Inc. 302-050-258-201 is a standard card edge connector from the 302 series, designed for dual-edge non-specified cards. It features 50 positions with a 0.050-inch (1.27mm) contact spacing and gold flash plated contacts. The connector utilizes a female interface with right-angle termination for surface mount installation. The housing is black polyamide (PA66), supporting board thicknesses between 0.051 and 0.071 inches. It operates within a temperature range of -55°C to 85°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual-row configuration with right-angle termination for efficient PCB layout
• Gold flash plating on contacts ensures reliable signal transmission and corrosion resistance
• Compatible with non-specified dual-edge card types for versatile application integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnect solutions
• Medical equipment utilizing EDAC medical interconnect components
• Consumer electronics needing compact high-density connections
• Communication infrastructure hardware

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or official channels. Confirm that the received parts match the specific 302-050-258-201 designation, including correct pin count and packaging type. Check for RoHS3 compliance documentation if required by project specifications. Ensure storage conditions maintain moisture sensitivity level integrity prior to soldering.

Edgeboard Connectors Selection Notes

Select this connector when a 50-position dual-edge interface with 1.27mm pitch is required. The right-angle design suits space-constrained vertical mounting scenarios. Consider the PA66 housing material and operating temperature range for environmental compatibility. Verify that the target PCB supports surface mount technology for the specified termination style.

Edgeboard Connectors Part Context

This component belongs to the EDAC 302 series, which specializes in standard card edge connectors with 0.050-inch spacing. The series offers various position counts and termination styles to accommodate diverse electronic assembly needs. EDAC provides comprehensive support materials, including CAD models and datasheets, to facilitate engineering integration and design validation processes.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers within the 302 series. Cross-reference pin configurations, spacing, and termination methods before substituting. Generic equivalents may not guarantee identical mechanical fit or electrical performance characteristics.
