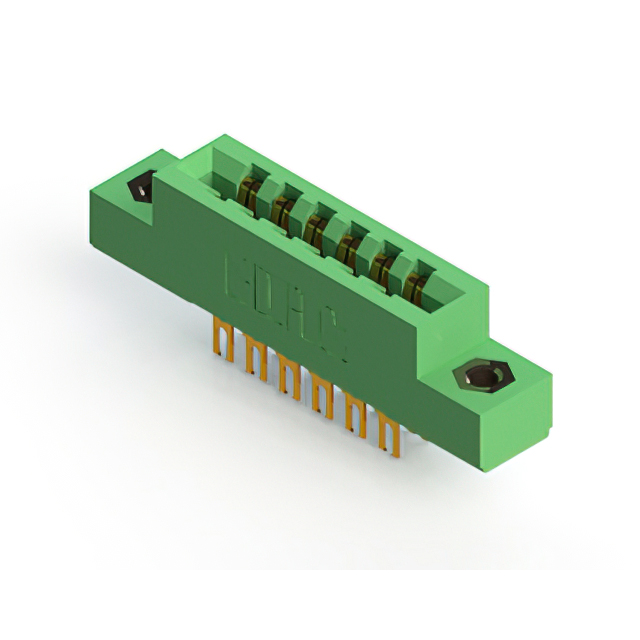

305-012-500-207

$6.71

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:d0be1645b4df Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-012-500-207 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-012-500-207

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：6
Number of Positions：12
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-012-500-207

305-012-500-207

Edgeboard Connectors Overview

The EDAC 305-012-500-207 is a standard card edge connector from the 305 series, designed for panel-mounted vertical installation. It features a dual-row configuration with 12 positions and a 3.96 mm (0.156 inch) pitch. The connector supports a maximum PCB thickness of 1.57 mm and utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. Rated for 5 A continuous current and 1800 VACrms dielectric voltage, it offers an insulation resistance of 5 GOhms. The termination type is solder eyelet, and the housing is constructed from thermoplastic material.

Edgeboard Connectors Feature Summary

Accepts between-contact and in-contact polarizing keys for secure mating alignment
Gold plating on mating area with tin plating on tails and nickel underplating
Vertical panel mount design compatible with standard card edge boards

Edgeboard Connectors Applications

Industrial control systems requiring robust card edge interfaces
Telecommunications equipment utilizing standardized connector pitches
Test and measurement instrumentation panels

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer datasheet to confirm termination style and plating specifications. Ensure the ordering part number matches the required position count and row configuration. Confirm RoHS compliance status through official documentation before procurement. Cross-reference the Mouser or DigiKey catalog numbers to validate availability and lead times.

Edgeboard Connectors Selection Notes

Select this component when a 12-position dual-row interface with a 3.96 mm pitch is required. Verify that the target printed circuit board thickness does not exceed 1.57 mm to ensure proper mechanical engagement. Consider the 5 A current rating and 1800 VACrms voltage rating for electrical safety margins. Ensure the application environment falls within the specified operating temperature range of -40 C to +105 C.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts while maintaining a consistent 3.96 mm pitch and vertical panel mount form factor. These connectors are engineered for high-reliability applications where secure mating and durable contact performance are critical requirements.
