305-012-555-203

Edgeboard Connectors Overview

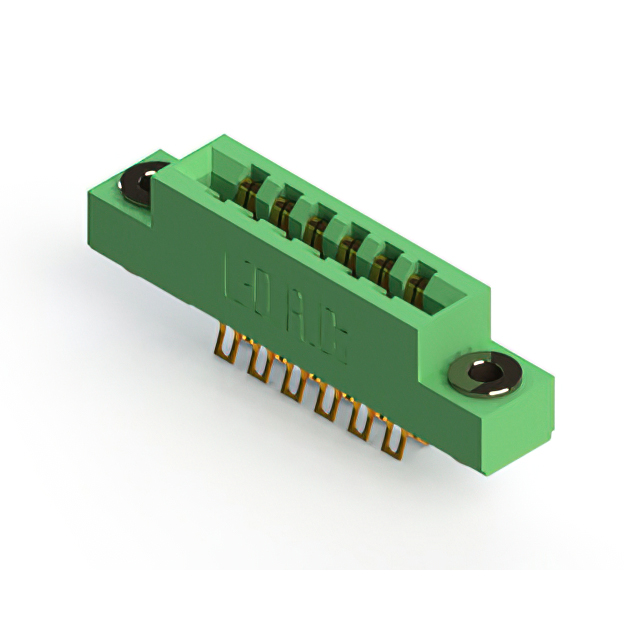

The EDAC Inc. 305-012-555-203 is a standard card edge connector from the 305 Series, designed for dual-edge board applications. It features 12 positions with a 3.96 mm (0.156 inch) contact spacing and a 3.56 mm row spacing. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Constructed with copper alloy contacts featuring gold plating, it supports a current rating of 5 A. The insulator body is made of thermoplastic polyester, colored green, and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row configuration with female half-beadle contacts for secure mating
• Low-profile insulator body constructed from thermoplastic polyester
• Gold-plated copper alloy contacts ensure reliable conductivity
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment backplanes
• Test and measurement instrumentation modules
• Computer peripheral interface cards

Edgeboard Connectors Procurement Notes

Verify that the target PCB design accommodates the specified 1.57 mm thickness tolerance. Confirm that the assembly process supports panel mounting requirements. Ensure compatibility with the 3.96 mm pitch layout. Check RoHS compliance status against specific project regulations before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connector with 12 positions is required. Choose this part for applications needing a 5 A current rating per contact. Opt for this model if panel mounting and vertical orientation are necessary. Consider this series for designs utilizing 0.062 inch thick PCBs.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, which offers various position counts and mounting options. The series provides dual-row configurations suitable for standard card edge applications. Other variants in the series include different pin counts such as 20, 38, and 50 positions while maintaining consistent electrical specifications.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts like 305-020-555-203 or 305-018-555-203 for higher position counts. Verify mechanical fit and electrical ratings before cross-referencing with other manufacturers' offerings.
