305-012-555-507

Edgeboard Connectors Overview

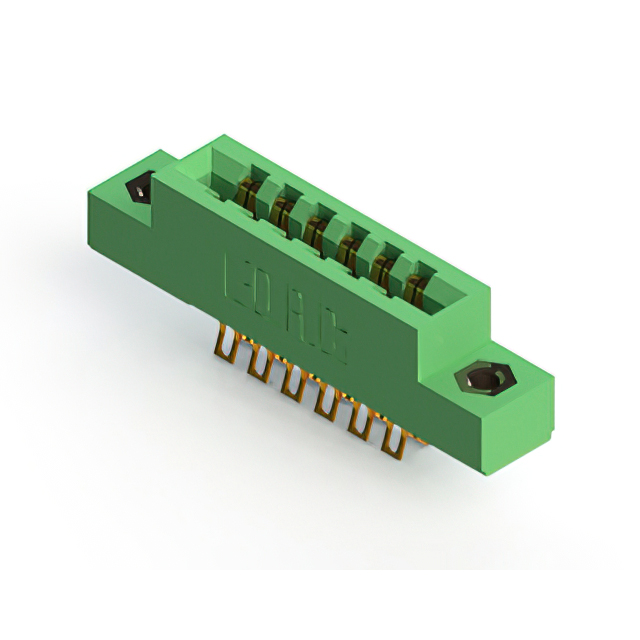

The EDAC Inc. 305-012-555-507 is a standard card edge connector from the 305 series, designed for panel mounting applications. It features a dual female configuration with 12 positions arranged in two rows of six. The connector utilizes a 0.156-inch (3.96 mm) pitch and supports board thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm). Electrical specifications include a current rating of 5 A and gold-plated contacts. The unit employs a solder pin termination type and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for reliable card edge interface
• Gold-plated copper alloy contacts ensure low resistance connection
• Panel mount installation style with vertical orientation
• Thermoplastic polyester insulation provides structural stability

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules
• Embedded computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact plating thickness and flange characteristics. Ensure compatibility with the target PCB card thickness limits defined in the specification. Confirm RoHS compliance status if required by project regulations. Cross-reference the Mouser or DigiKey part number for accurate availability checks. Validate that the panel mounting requirements match the physical dimensions provided in the mechanical drawings.

Edgeboard Connectors Selection Notes

Select this component when a 12-position dual-row card edge connector is required for panel-mounted systems. The 3.96 mm pitch accommodates specific legacy or high-density design constraints. Verify that the 5 A current rating meets the signal power requirements. Ensure the operating temperature range aligns with the environmental conditions of the deployment site. Confirm that the vertical mounting angle fits within the enclosure spatial limitations.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which offers various position counts and mounting styles. The series is characterized by robust construction suitable for industrial environments. Similar models in the lineup differ primarily in the number of positions and specific flange configurations. The 305 series maintains consistent pitch and electrical standards across variants.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 305-012-555-268 and 305-012-555-568, differing mainly in flange or plating details. Verify mechanical fit and electrical ratings before substitution. Generic equivalents may lack the specific panel mount features.
