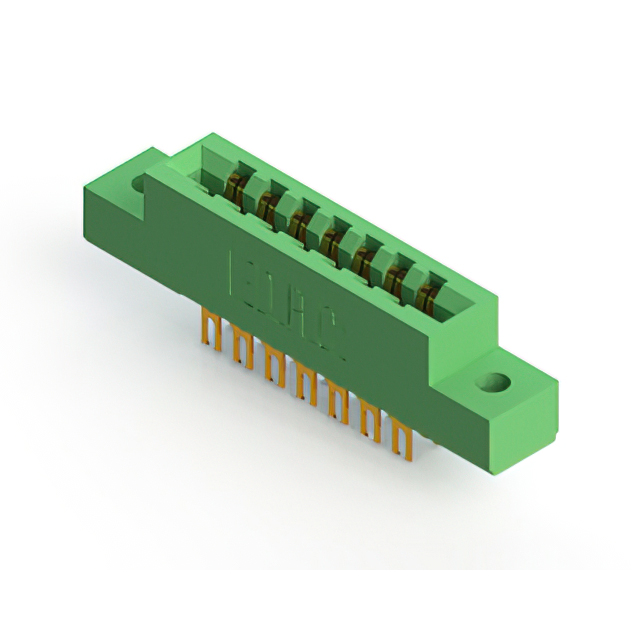

305-014-500-202

$4.91

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:c10799bed3ba Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-014-500-202 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-014-500-202

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：7
Number of Positions：14
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-014-500-202

305-014-500-202

Edgeboard Connectors Overview

The EDAC Inc. 305-014-500-202 is a standard card edge connector from the 305 series, designed for panel mount and through-hole termination. It features a dual female configuration with 14 positions arranged in two rows. The contact spacing is 0.156 inches (3.96 mm), with a row spacing of 0.140 inches (3.56 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are made of copper alloy with gold plating.

Edgeboard Connectors Feature Summary

Dual female contact configuration for secure board insertion
Gold-plated copper alloy contacts for reliable conductivity
Panel mount installation with through-hole solder termination
Low profile insulator body construction

Edgeboard Connectors Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Test and measurement instrument modules
General-purpose electronic assembly interfaces

Edgeboard Connectors Procurement Notes

Verify the complete part number against official EDAC documentation to ensure correct pin count, pitch, and termination style. Confirm RoHS compliance status and material specifications match project requirements. Cross-reference datasheet drawings for mounting dimensions and board thickness tolerances before procurement to avoid integration issues.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 14-position interface with 0.156-inch spacing is required. Ensure the target PCB thickness aligns with the 0.062-inch nominal specification. Consider the vertical panel mount orientation and through-hole soldering process during mechanical design. Verify that the gold contact plating meets environmental durability needs.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic applications. The 305-014 variant specifically provides a compact dual-row solution suitable for space-constrained panel installations requiring robust electrical connections.
