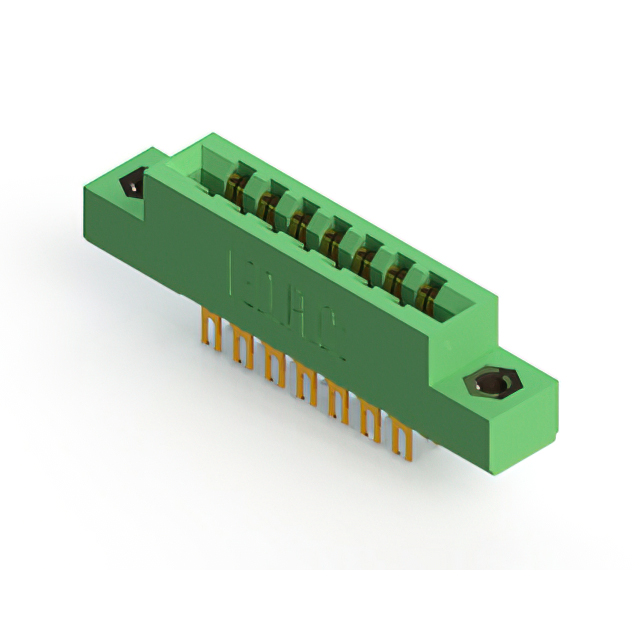

305-014-500-507

$6.79

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:6b1749397b93 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-014-500-507 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-014-500-507

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：7
Number of Positions：14
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-014-500-507

305-014-500-507

Edgeboard Connectors Overview

The EDAC Inc. 305-014-500-507 is a standard card edge connector from the 305 series, designed for panel mount applications with a vertical orientation. It features a dual female configuration with 14 positions and a 3.96 mm (0.156 inch) pitch. The contacts are gold-plated copper alloy, supporting a continuous current rating of 5 A and an insulation resistance of 5 GOhms. The housing is green thermoplastic, accommodating PCBs up to 1.57 mm thick. Operating temperatures range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

Dual-edge female contact design for secure board retention
Gold-plated phosphor bronze contacts ensure reliable conductivity
Accepts between-contact and in-contact polarizing keys
Thermoplastic insulation provides stable electrical performance

Edgeboard Connectors Applications

Industrial control panels requiring robust interconnects
Telecommunications equipment backplanes
Test and measurement instrumentation modules
Automotive electronic subsystems

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 14-position dual-edge specification. Confirm that the gold plating thickness meets application requirements for contact durability. Ensure the panel mounting style aligns with the mechanical design constraints. Check compatibility with polarizing keys if signal isolation is necessary. Validate thermal ratings against operational environment limits.

Edgeboard Connectors Selection Notes

Select this component when a high-current 5A connection is needed for double-sided card edges. The 3.96 mm pitch suits larger industrial boards. Consider the vertical panel mount style for fixed installations. Verify that the green thermoplastic housing meets environmental standards. Ensure the 1.57 mm max PCB thickness fits the target hardware.

Edgeboard Connectors Part Context

This connector belongs to EDAC's 305 series, which focuses on heavy-duty card edge solutions. The series offers various position counts and mounting options. The 305-014-500-507 specifically addresses needs for moderate-density connections with high reliability. It complements other series like 355 for different pitch requirements.
