305-014-521-504

Edgeboard Connectors Overview

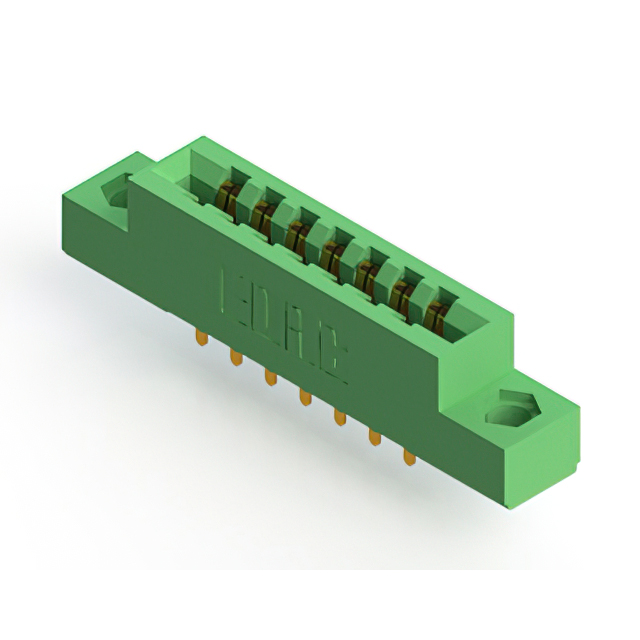

The EDAC Inc. 305-014-521-504 is a standard card edge connector designed for panel mount applications. It features a dual female configuration with 14 positions and a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts with a solder lug termination type. It accommodates printed circuit boards with a thickness range of 1.37 mm to 1.78 mm (0.054 to 0.070 inches). The unit operates within a temperature range of -40°C to 105°C and is constructed from thermoplastic polyester insulation.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for non-specified board types
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Solder lug termination facilitates secure panel mounting
• Thermoplastic polyester insulation provides structural stability

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Automotive electronic module interfaces
• Test and measurement instrument connections

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm pin count, pitch, and termination style match the design requirements. Ensure compatibility with the target PCB thickness and panel mounting constraints. Confirm RoHS compliance status if required by project specifications. Cross-reference ordering guides for accurate series identification.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required for panel-mounted installations. Consider the 14-position capacity and 5A current rating for load requirements. Evaluate the thermal operating range and material composition against environmental conditions. Verify that the solder lug termination aligns with the assembly process and mechanical fixation needs.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, which offers various position counts and configurations for card edge applications. The series is characterized by robust construction suitable for demanding environments. Similar parts in the lineup may differ in position count, such as 14, 30, or higher, while maintaining consistent pitch and mounting styles for standardized integration across product lines.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include variants like 305-014-521-202, which shares identical electrical and mechanical specifications but may differ in packaging or minor cosmetic attributes. Verify exact dimensional tolerances and contact plating thickness before substitution to ensure functional equivalence.
