305-014-556-507

Edgeboard Connectors Overview

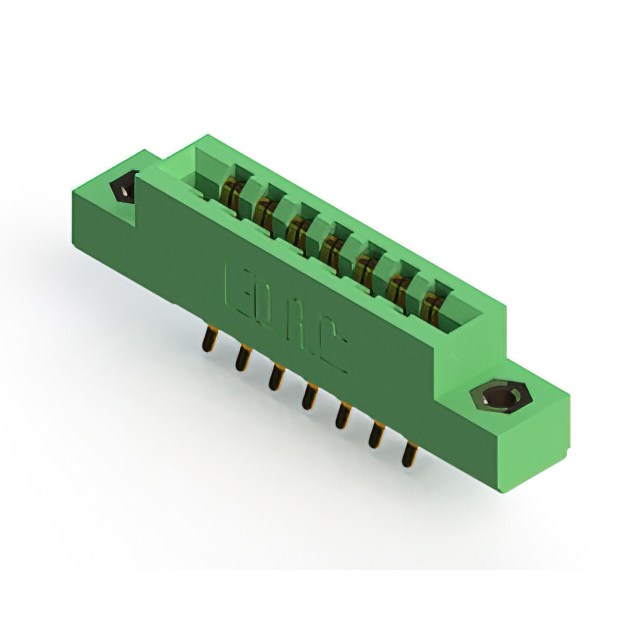

The EDAC Inc. 305-014-556-507 is a standard card edge connector from the 305 Series, designed for dual-edge board insertion. It features 14 positions with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.140 inches (3.56 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are gold-plated copper alloy, rated for 5 A current. The housing is green thermoplastic, supporting vertical panel mounting.

Edgeboard Connectors Feature Summary

• Dual-edge design accommodates two-sided PCBs for increased I/O density
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Vertical panel mount style provides secure mechanical installation

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing modular board architectures
• Test and measurement devices needing high-reliability connections

Edgeboard Connectors Procurement Notes

Verify part number accuracy against official EDAC documentation before procurement. Confirm RoHS compliance status and specific packaging requirements directly with authorized distributors. Ensure compatibility with target PCB thickness and mounting constraints. Check for obsolescence or lifecycle changes via manufacturer channels prior to ordering.

Edgeboard Connectors Selection Notes

Select this component when dual-edge connectivity is required for 14-position applications. Verify that the 3.96 mm pitch aligns with the system's board layout. Ensure the 5 A current rating meets electrical demands. Confirm panel mounting orientation matches the enclosure design specifications.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, which offers various position counts and configurations for card edge applications. The series is characterized by its standardized 3.96 mm pitch and robust construction suitable for demanding environments. It serves as a critical interconnect solution within larger electronic assemblies.

Edgeboard Connectors Replacement Considerations

Direct substitutes must maintain identical 14-position count, 3.96 mm pitch, and dual-edge configuration. Verify equivalent current ratings and mounting styles. Cross-reference with other EDAC 305 Series variants if pin count differs.
