Edgeboard Connectors Overview

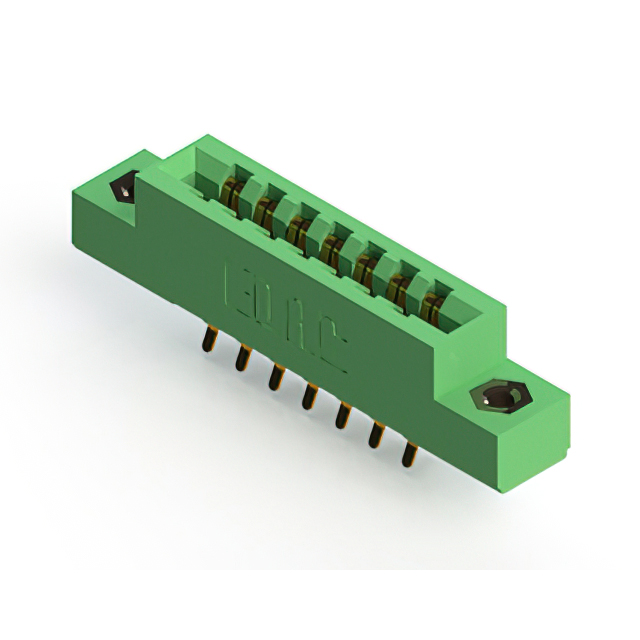

The EDAC Inc. 305-014-556-508 is a standard card edge connector designed for vertical panel mounting applications. It features a dual-edge female configuration with 14 positions and a 3.96 mm (0.156 inch) pitch. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. The housing is made of green thermoplastic material, providing structural integrity and insulation. This component supports a printed circuit board thickness of 1.57 mm and utilizes solder pin termination for secure attachment. It operates within a temperature range of -40°C to +105°C and has an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure card insertion
• Gold-plated copper alloy contacts for enhanced conductivity
• Vertical panel mount style with solder pin termination
• Green thermoplastic insulator housing

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplanes
• Computing hardware peripheral modules
• Test and measurement instrumentation boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact physical dimensions and plating specifications. Ensure compatibility with the target PCB stack-up and mating card edge thickness. Confirm that the vertical panel mount orientation aligns with the mechanical enclosure design requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge female interface with a 3.96 mm pitch is required for vertical panel integration. The 14-position count suits moderate-density interconnect needs. Verify that the operating environment stays within the specified thermal limits and that the gold-plated contacts meet the necessary electrical performance criteria for the application.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting options, all sharing common electrical characteristics and dimensional standards. The 305-014-556-508 specifically provides a 14-position variant optimized for vertical panel installation, maintaining consistency with the broader family's reliability standards.

Edgeboard Connectors Replacement Considerations

Consult official cross-reference lists for verified substitutes. Ensure any replacement maintains the 3.96 mm pitch, 14-position count, and dual-edge female configuration. Verify mechanical fit and electrical ratings match the original design specifications.
