305-016-555-558

Edgeboard Connectors Overview

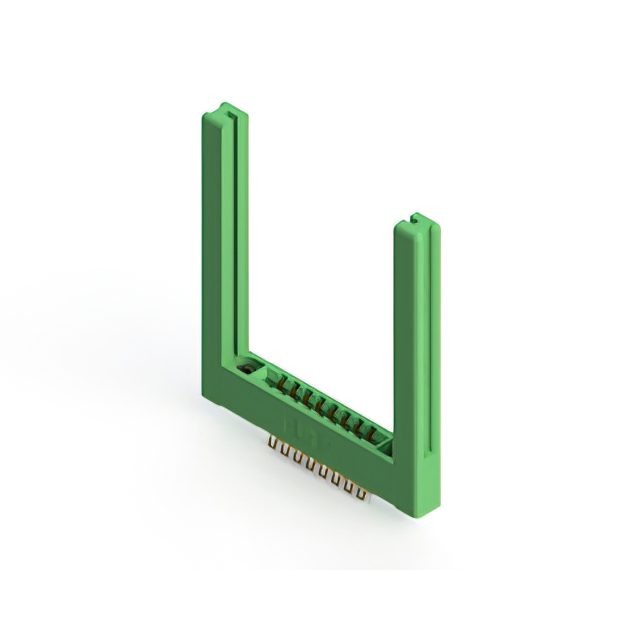

The EDAC Inc. 305-016-555-558 is a standard card edge connector featuring 16 positions in a dual row configuration. It utilizes a 3.96 mm (0.156 inch) pitch and is designed for a board thickness of 1.57 mm. The component employs gold-plated copper alloy contacts with a female gender designation. Termination is achieved through solder lug end types, and the unit is housed in a green thermoplastic insulator.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for secure card engagement
• Gold-plated copper alloy contacts to ensure reliable signal transmission
• Solder lug termination style for panel mounting applications

Edgeboard Connectors Applications

• Card extender systems requiring dual row connectivity
• Panel-mounted electronic assemblies utilizing card edge interfaces
• Industrial control modules needing robust mechanical retention

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure that the solder lug termination style aligns with the intended panel mounting hardware. Confirm compliance requirements such as RoHS status directly from the manufacturer's current datasheet before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual row interface with a 3.96 mm pitch is required for panel mounting. The solder lug termination necessitates compatible panel cutouts and mounting hardware. Verify that the target circuit board thickness matches the specified 1.57 mm dimension to ensure proper contact engagement and mechanical stability during operation.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination styles. The 305-016-555-558 specifically addresses the need for a 16-position dual row connector with solder lug termination, distinguishing it from surface mount or wire wrap variants within the same family.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference lists for verified substitutes. Generic equivalents may not match the specific solder lug termination or panel mounting requirements. Ensure any replacement maintains the 3.96 mm pitch and dual row configuration to preserve mechanical fit.
